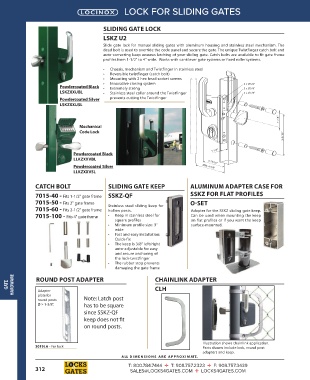

LOCK FOR SLIDING GATES

SLIDING GATE LOCK

LSKZ U2
Slide gate lock for manual sliding gates with aluminum housing and stainless steel mechanism. The
dead bolt is used to override the code panel and secure the gate. The unique Twistfinger catch bolt and
auto-correcting keep ensures latching of your sliding gate. Catch bolts are available to fit gate frame
profiles from 1-1/2" to 4" wide. Works with cantilever gate systems or fixed roller systems.
• Chassis, mechanism and Twistfinger in stainless steel
• Reversible twistfinger (catch bolt)
• Mounting with 2 hex head socket screws
• Innovative closing system 2 x Ø3/8"
Powdercoated Black • Extremely strong 2 x Ø5/8"
LSKZXXUBL • Stainless steel collar around the Twistfinger 2 x Ø7/8"
Powdercoated Silver prevents cutting the Twistfinger
LSKZXXUSL

1-7/8"
Mechanical
Code Lock
5-9/16"

1-1/4"
Powdercoated Black
LLKZXXVBL
3-13/16"
Powdercoated Silver MIN. 4-3/8"
LLKZXXVSL

CATCH BOLT SLIDING GATE KEEP ALUMINUM ADAPTER CASE FOR

7015-40 - Fits 1-1/2" gate frame SSKZ-QF SSKZ FOR FLAT PROFILES
7015-50 - Fits 2" gate frame OSET
Stainless steel sliding keep for
7015-60 - Fits 2-1/2" gate frame hollow posts. Adapter for the SSKZ sliding gate keep. sliding gate keep.
7015-100 - Fits 4" gate frame • Keep in stainless steel for Can be used when mounting the keep keep
on flat profiles or if you want the keep
square profiles on flat profiles or if you want the keep
• Minimum profile size: 3" surface-mounted.
wide
• Fast and easy installation:
Quick-fix
• The keep is 3/8" left/right
auto-adjustable for easy
and secure anchoring of
the lock-twistfinger
• The rubber stop prevents
damaging the gate frame

HARDWARE Adapter CLH
GATE ROUND POST ADAPTER CHAINLINK ADAPTER

plate for
round posts Note: Latch post
Ø ≥ 1-3/8". has to be square
since SSKZ-QF
keep does not t
on round posts.

Illustration shows chainlink application.
3019LA For lock Parts shown include lock, round post
adapters and keep.
A LL DIMENSIONS ARE APPR O XIM ATE .
