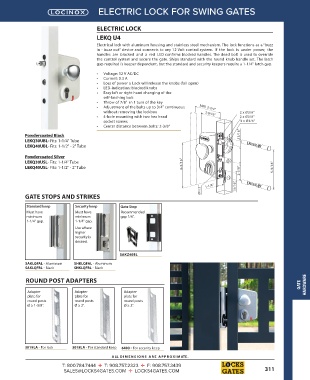

ELECTRIC LOCK FOR SWING GATES

ELECTRIC LOCK

LEKQ U4
Electrical lock with aluminum housing and stainless steel mechanism. The lock functions as a “buzz
in - buzz out” device and connects to any 12 Volt control system. If the lock is under power, the
handles are blocked and a red LED confirms blocked handles. The dead bolt is used to override
the control system and secure the gate. Ships standard with the round knob handle set. The latch
gap required is keeper dependent, but the standard and security keepers require a 1-1/4" latch gap.
• Voltage: 12 V AC/DC
• Current: 0.3 A
• Loss of power ≥ Lock will release the knobs (fail open)
• LED-indication: blocked knobs
• Easy left or right hand changing of the
self-latching bolt
• Throw of 7/8" in 1 turn of the key
• Adjustment of the bolts up to 3/4" continuous MIN. 3-3/4"
without removing the lockbox 3-9/16" 2 x Ø3/8"
• 4-hole mounting with two hex head 2 x Ø5/8"
socket screws 4 x Ø3/4"
• Center distance between bolts: 2-3/8"
Powdercoated Black 13/16"
LEKQ30UBL- Fits: 1-1/4" Tube
LEKQ40UBL- Fits: 1-1/2" - 2" Tube

Powdercoated Silver
LEKQ30USL- Fits: 1-1/4" Tube 6-5/16"
LEKQ40USL- Fits: 1-1/2" - 2" Tube 5-9/16"
2-3/8"

Ø1/2" 1-1/4" 15/16"
GATE STOPS AND STRIKES

Standard keep Security keep Gate Stop
Must have Must have Recommended
minimum minimum gap 1/4".
1-1/4" gap. 1-1/4" gap.
Use where
higher
security is
desired.

SAKZ40BL
SAKLQFAL Aluminum SHKLQFAL Aluminum
SAKLQFBL Black SHKLQFBL Black

ROUND POST ADAPTERS
GATE HARDWARE
Adapter Adapter Adapter
plate for plate for plate for
round posts round posts round posts
Ø ≥ 1-3/8". Ø ≥ 2". Ø ≥ 2".

3019LA For lock 3018LA For standard keep 6403 For security keep
A LL DIMENSIONS ARE APPR O XIM ATE .
