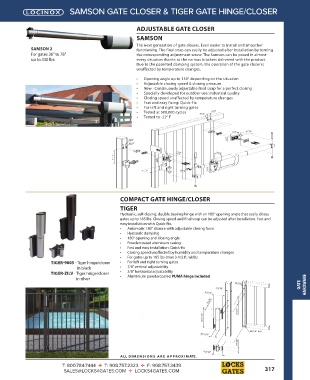

Page 319 - Catalog

SAMSON GATE CLOSER & TIGER GATE HINGE/CLOSER

ADJUSTABLE GATE CLOSER

SAMSON
The next generation of gate closers. Even easier to install and smoother
SAMSON 2 functioning. The final snap can easily be adjusted after installation by turning
For gates 36" to 78" the corresponding adjustment screw. The Samson can be posed in almost
up to 330 lbs. every situation thanks to the various brackets delivered with the product.
Due to the patented damping system, the operation of the gate closer is
unaffected by temperature changes.

• Opening angle up to 150° depending on the situation
• Adjustable closing speed & closing pressure
• New : Continuously adjustable final snap for a perfect closing
• Specially developed for outdoor use: industrial quality
• Closing speed unaffected by temperature changes
• Fast and easy fixing: Quick-Fix
• For left and right turning gates
• Tested at 500,000 cycles Ø 9/16” 1-3/16”
• Tested to -22° F

3-1/4” 1-3/4”
1-3/8”
1-3/16”
Ø 9/16”
2” 1-5/8” 2-13/16”
3”

.
n
1-3/8”
i
M
2”
1-3/8” 3-7/16”
4”
COMPACT GATE HINGE/CLOSER

TIGER
Hydraulic, self-closing, double bearing hinge with an 180° opening angle that easily closes
gates up to 165 lbs. Closing speed and final snap can be adjusted after installation. Fast and
easy installation with Quick-Fix.
• Automatic 180° closure with adjustable closing force
• Hydraulic damping
• 180° opening and closing angle
• Powdercoated aluminum casing
• Fast and easy installation: Quick-fix
• Closing speed unaffected by humidity and temperature changes
• For gates up to 165 lbs (max 3-1/2 ft. wide)
TIGER9005 - Tiger hinge/closer • For left and right turning gates
in black • 7/8” vertical adjustability
TIGERZILV - Tiger hinge/closer • 3/8” horizontal adjustability
in silver • Aluminium powdercoated PUMA hinge included
GATE HARDWARE
25/32”
1-3/16”
4-3/16”
2-3/8”

2-3/4”
10-7/16”

Ø9/16” (6x)
Ø1-7/8”
1-9/16”

4-3/16”
A LL DIMENSIONS ARE APPR O XIM ATE .
