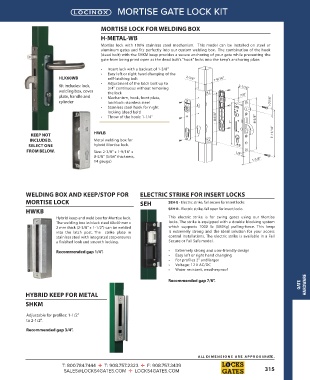

MORTISE GATE LOCK KIT

MORTISE LOCK FOR WELDING BOX

H-METAL-WB
Mortise lock with 100% stainless steel mechanism. This model can be installed on steel or
aluminum gates and fits perfectly into our custom welding box. The combination of the hook
(dead bolt) with the SHKM keep provides a secure anchoring of your gate while preventing the
gate from being pried open as the dead bolt’s “hook” locks into the keep’s anchoring plate.
• Insert lock with a backset of 1-3/8"
• Easy left or right hand changing of the
HLK60WB self-latching bolt 2-3/8" 1-9/16"
• Adjustment of the latch bolt up to
Kit includes: lock, 2-1/16"
welding box, cover 3/4" continuous without removing
the lock
plate, handle and • Mechanism, hook, front plate, 7/8"
cylinder latchbolt: stainless steel 1-7/16"
• Stainless steel hook for night
locking (dead bolt)
• Throw of the hook: 1-1/4" 8-5/8" 8-3/8"
7"

KEEP NOT HWLB 7-11/16"
INCLUDED. Metal welding box for
SELECT ONE hybrid Mortise lock.
FROM BELOW. Size: 2-3/8" x 1-9/16" x 1/8"
8-5/8" (5/64” thickness,
14 gauge) 1-3/8"

WELDING BOX AND KEEP/STOP FOR ELECTRIC STRIKE FOR INSERT LOCKS
MORTISE LOCK SEH SEHE - Electric strike, fail secure for insert locks
HWKB SEHR - Electric strike, fail open for insert locks

Hybrid keep and weld box for Mortise lock. This electric strike is for swing gates using our Mortise
The welding box in black steel 60x40 mm x locks. The strike is equipped with a double blocking system
2 mm thick (2-3/8" x 1-1/2") can be welded which supports 1000 lb (500Kg) pulling-force. This keep
into the latch post. The strike plate in is extremely strong and the ideal solution for your access
stainless steel with integrated stop ensures control installations. The electric strike is available in a Fail
a finished look and smooth locking. Secure or Fail Safe model.
Recommended gap 1/4". • Extremely strong and user-friendly design
• Easy left or right hand changing
• For profiles 2" and larger
• Voltage: 12 V AC/DC
• Water resistant, weatherproof

Recommended gap 7/8".
GATE HARDWARE
HYBRID KEEP FOR METAL
SHKM

Adjustable for profiles: 1-1/2"
to 2-1/2".
Recommended gap 3/4".

A LL DIMENSIONS ARE APPR O XIM ATE .
