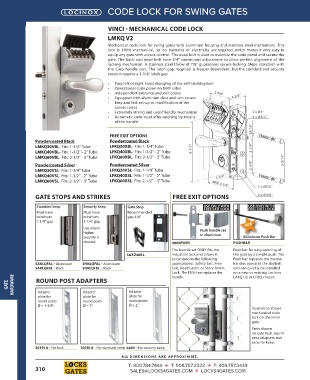

Page 312 - Catalog

CODE LOCK FOR SWING GATES

VINCI MECHANICAL CODE LOCK

LMKQ V2
Mechanical code lock for swing gates with aluminum housing and stainless steel mechanism. This
lock is 100% mechanical, so no batteries or electricity are required, which makes it very easy to
equip any gate with access control. The dead bolt is used to override the code panel and secure the
gate. The latch and dead bolt have 3/4" continuous adjustment to allow perfect alignment of the
locking mechanism. A stainless steel throw of 7/8" guarantees secure locking. Ships standard with
the Club handle pair. The latch gap required is keeper dependent, but the standard and security
keepers require a 1-1/4" latch gap.

• Easy left or right hand changing of the self-latching bolt
• Operational code panel on both sides
• Independent entrance and exit codes 3-5/8"
• Equipped with aluminum dust and rain covers 4-3/4"
• Easy and fast set-up or modification of the
access codes
• Extremely strong and user-friendly mechanism 2 x Ø1"
• Automatic code reset after opening by means 2 x Ø3/4"
of the handle
13/16"
FREE EXIT OPTIONS
Powdercoated Black Powdercoated Black
LMKQ30VBL- Fits: 1-1/4" Tube LFKQ30XBL- Fits: 1-1/4" Tube 2-3/8"
LMKQ40VBL- Fits: 1-1/2" - 2" Tube LFKQ40XBL- Fits: 1-1/2" - 2" Tube 8-1/2"
LMKQ60VBL- Fits: 2-1/2" - 3" Tube LFKQ60XBL- Fits: 2-1/2" - 3" Tube 5-9/16"
Powdercoated Silver Powdercoated Silver 2-3/8"
LMKQ30VSL- Fits: 1-1/4" Tube LFKQ30XSL- Fits: 1-1/4" Tube
LMKQ40VSL- Fits: 1-1/2" - 2" Tube LFKQ40XSL- Fits: 1-1/2" - 2" Tube 1-1/4"
LMKQ60VSL- Fits: 2-1/2" - 3" Tube LFKQ60XSL- Fits: 2-1/2" - 3" Tube

MIN. 4-3/8"
2 x Ø5/8"
GATE STOPS AND STRIKES FREE EXIT OPTIONS 2 x Ø3/8"

Standard keep Security keep Gate Stop USE ONLY WITH USE ONLY WITH
FREE EXIT LOCK
FREE EXIT LOCK
Must have Must have Recommended
minimum minimum gap 1/4".
1-1/4" gap. 1-1/4" gap.
Use where
higher Push handle set
in aluminum
A
security is Aluminum Push Barluminum Push Bar
desired. 3006PUSH PUSHBAR
The handle set ONLY fits the Push bar for easy opening of
SAKZ40BL Industrial lock and allows it the gate by a simple push. The
to be used in the following Push bar replaces the normal
SAKLQFAL Aluminum SHKLQFAL Aluminum applications: Safety Exit, Free handle, operates the daybolt
SAKLQFBL Black SHKLQFBL Black Exit, Dead Latch, or Store Room and can quickly be installed
Lock. The PUSH-set replaces the on a new or existing Locinox
HARDWARE
handle.
LAKQ U2 or LFKQ chassis.
GATE ROUND POST ADAPTERS
Adapter
plate for
plate for Adapter Adapter
plate for
round posts round posts round posts
Ø ≥ 1-3/8". Ø ≥ 2". Ø ≥ 2".
Illustration shows
mechanical code
lock on chainlink
gate.
Parts shown
include lock, round
post adapters and
security keep.
3019LA For lock 3018LA For standard keep 6403 For security keep
A LL DIMENSIONS ARE APPR O XIM ATE .
