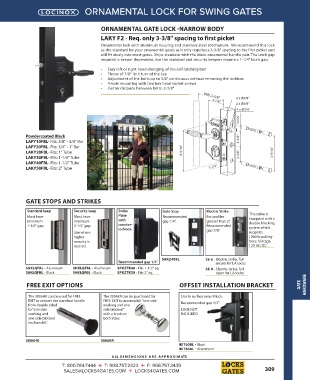

ORNAMENTAL LOCK FOR SWING GATES

ORNAMENTAL GATE LOCK NARROW BODY

LAKY F2 - Req. only 3-3/8" spacing to first picket
Ornamental lock with aluminum housing and stainless steel mechanism. We recommend this lock
as the standard for your ornamental gates as it only requires a 3-3/8" spacing to the first picket and
will fit nicely into most gates. Ships standard with the black ornamental handle pair. The latch gap
required is keeper dependent, but the standard and security keepers require a 1-1/4" latch gap.
• Easy left or right hand changing of the self-latching bolt
• Throw of 7/8" in 1 turn of the key
• Adjustment of the bolts up to 3/8" continuous without removing the lockbox
• 4-hole mounting with two hex head socket screws
• Center distance between bolts: 2-3/8"

MIN. 3-3/8"
2 x Ø3/8"
3-1/8"
2 x Ø5/8"
4 x Ø3/4"
13/16"

Powdercoated Black
LAPY10FBL- Fits: 3/8" - 3/4" Bar 2-3/8"
LAPY20FBL- Fits: 3/4" - 1" Bar
LAKY20FBL- Fits: 1" Tube 6-5/16" 5-9/16"
LAKY30FBL- Fits: 1-1/4" Tube 2-3/8"
LAKY40FBL- Fits: 1-1/2" Tube
LAKY50FBL- Fits: 2" Tube 1-1/4"

GATE STOPS AND STRIKES

Standard keep Security keep Strike Gate Stop Electric Strike
Must have Must have Plate Recommended For profiles The strike is
equipped with a
minimum minimum with gap 1/4". greater than 2". double blocking
1-1/4" gap. 1-1/4" gap. counter- Recommended
lockbox. gap 7/8". system which
Use where supports
higher 1000 lb pulling-
security is force. Voltage
desired. 12V AC/DC.

SAKZ40BL SEE - Electric strike, fail
Recommended gap 1/4" secure for LA locks
SAKLQFAL Aluminum SHKLQFAL Aluminum SPKZTK40 Fits 1-1/2" sq. SER - Electric strike, fail
SAKLQFBL Black SHKLQFBL Black SPKZTK50 Fits 2" sq. open for LA locks
FREE EXIT OPTIONS OFFSET INSTALLATION BRACKET GATE HARDWARE

The 3006HK can be used for FREE The 3006KR can be purchased for Use to surface mount lock.
EXIT to convert the standard handle FREE EXIT to accomplish "one side
from double sided working and one Recommended gap 1/2".
to "one side side blocked" LOCK NOT
working and with a knob on INCLUDED
one side blocked both sides.
(no handle)".

3006HK 3006KR
IKIT60BL Black
IKIT60AL Aluminum
A LL DIMENSIONS ARE APPR O XIM ATE .
