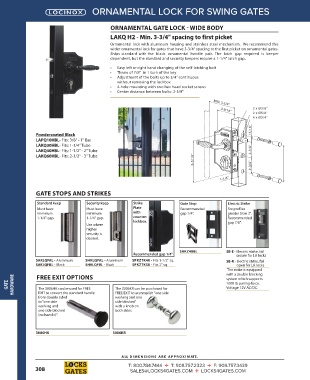

ORNAMENTAL LOCK FOR SWING GATES

ORNAMENTAL GATE LOCK WIDE BODY
LAKQ H2 - Min. 3-3/4" spacing to first picket

Ornamental lock with aluminum housing and stainless steel mechanism. We recommend this
wider ornamental lock for gates that have 3-3/4" spacing to the first picket on ornamental gates.
Ships standard with the black ornamental handle pair. The latch gap required is keeper
dependent, but the standard and security keepers require a 1-1/4" latch gap..

• Easy left or right hand changing of the self-latching bolt
• Throw of 7/8" in 1 turn of the key
• Adjustment of the bolts up to 3/4" continuous
without removing the lockbox
• 4-hole mounting with two hex head socket screws
• Center distance between bolts: 2-3/8"

MIN. 3-3/4"
2 x Ø3/8"
3-9/16"
2 x Ø5/8"
4 x Ø3/4"
13/16"
Powdercoated Black
LAPQ10HBL- Fits: 3/8" - 1" Bar
LAKQ30HBL- Fits: 1-1/4" Tube
LAKQ40HBL- Fits: 1-1/2" - 2" Tube 2-3/8"
LAKQ60HBL- Fits: 2-1/2" - 3" Tube
6-5/16" 2-3/8"

1-1/4"

GATE STOPS AND STRIKES

Standard keep Security keep Strike Gate Stop Electric Strike
Must have Must have Plate Recommended For profiles
minimum minimum with gap 1/4". greater than 2".
1-1/4" gap. 1-1/4" gap. counter- Recommended
lockbox. gap 7/8".
Use where
higher
security is
desired.

SAKZ40BL SEE - Electric strike, fail
Recommended gap 1/4" secure for LA locks
SAKLQFAL Aluminum SHKLQFAL Aluminum SPKZTK40 Fits 1-1/2" sq. SER - Electric strike, fail
SAKLQFBL Black SHKLQFBL Black SPKZTK50 Fits 2" sq. open for LA locks
The strike is equipped
with a double blocking
FREE EXIT OPTIONS
HARDWARE The 3006HK can be used for FREE The 3006KR can be purchased for Voltage 12V AC/DC.
GATE system which supports
1000 lb pulling-force.
EXIT to convert the standard handle
working and one
from double sided FREE EXIT to accomplish "one side
to "one side side blocked"
working and with a knob on
one side blocked both sides.
(no handle)".

3006HK 3006KR

A LL DIMENSIONS ARE APPR O XIM ATE .
