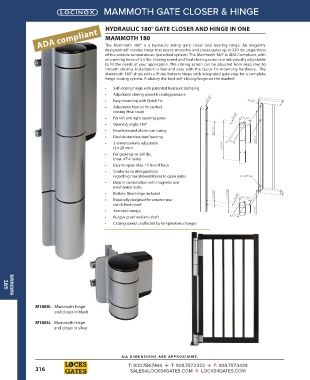

MAMMOTH GATE CLOSER & HINGE

ADA compliant HYDRAULIC 180° GATE CLOSER AND HINGE IN ONE
MAMMOTH 180
The Mammoth 180° is a hydraulic swing gate closer and bearing hinge. An elegantly
designed self-closing hinge that opens smoothly and closes gates up to 330 lbs., regardless
of the outside temperatures (patented system). The Mammoth 180° is ADA Compliant, with
an opening force of 3.5 lbs. Closing speed and final closing action are individually adjustable
to fit the needs of your application. The closing action can be adjusted from snap shut to
smooth closing. Installation is fast and easy with the Quick-Fix mounting hardware. The
Mammoth 180° ships with a Rhino bottom hinge with integrated gate stop for a complete
hinge closing system. Probably the best self-closing hinge on the market!
• Self-closing hinge with patented hydraulic damping
• Adjustable closing speed & closing pressure
• Easy mounting with Quick-Fix 25/32” 25/32”
• Adjustable freerun for perfect
closing (nal snap)
• For left and right opening gates 2-3/8” 4-11/32”
• Opening angle: 180°
• Powdercoated aluminum casing 5-9/16”
• Double stainless steel bearing 5-9/16”
• 2-dimensionally adjustable 2”
(2 x 20 mm) 15-3/4”
• For gates up to 330 lbs.
(max. 47¼” wide)
• Easy to open: Max. 15 Nm of force
• Conforms to all regulations
regarding max allowed forces to open gates Ø 5/8” (8x)
• Ideal in combination with magnetic and
mechanical locks
• Bottom Dino hinge included 1-9/16” 4-11/32”
• Especially designed for exterior use: 2-3/8” 4-11/32”
rain & frost-proof
• Aesthetic design 1-9/16”
• Burglar proof and anti-theft 2”
• Closing speed unaected by temperature changes

HARDWARE
GATE

M180BL - Mammoth hinge
and closer in black
M180SL - Mammoth hinge
and closer in silver

A LL DIMENSIONS ARE APPR O XIM ATE .
T: 800.784.7444 T: 908.757.2323 F: 908.757.3439
316 SALES@LOCKS4GATES.COM LOCKS4GATES.COM
