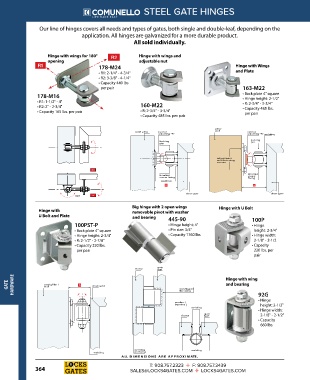

Page 366 - CATALOG

STEEL GATE HINGES

Our line of hinges covers all needs and types of gates, both single and double-leaf, depending on the
application. All hinges are galvanized for a more durable product.
All sold individually.

Hinge with wings for 180° R2 Hinge with wings and
opening adjustable nut
R1 178-M24 Hinge with Wings
• R1: 2-1/4" - 4-3/4" and Plate
• R2: 3-3/8" - 4-1/4"
• Capacity 440 lbs
per pair 163-M22
178-M16 • Back plate 4" square
• Hinge height: 2-1/2"
• R1: 1-1/2" - 4" • R: 2-3/4" - 3-3/4"
• R2: 2" - 2-3/4" 160-M22 • Capacity 485 lbs.
• Capacity 165 lbs. per pair • R: 2-3/4" - 3-3/4" per pair
• Capacity 485 lbs. per pair

pillar
steel pillar nut for wall nut for
adjusting “R” adjusting “R” welding
locking locking
pin
pin
adjustment
and fastening
screws
OUT
knurled knurled
screw
screw fixing fixing
welding
R R R R
door gate door gate
180ϒ IN
Big hinge with 2 open wings Hinge with U Bolt
Hinge with removable pivot with washer
U Bolt and Plate and bearing 445-90 100P
100PST-P • Hinge height: 4" • Hinge
• Back plate 4" square • Pin size: 3/4" height: 2-3/4"
• Hinge height: 2-3/4" • Capacity 1760 lbs. • Hinge width:
• R: 2-1/2" - 2-7/8" 2-1/8" - 2-1/2
• Capacity 220 lbs. • Capacity
per pair 220 lbs. per
pair

gate
frame leaf
HARDWARE wall R R door gate welding on
GATE steel pillar / Hinge with wing
and bearing
the wing
92G
• Hinge
washer /
bearing height: 2-1/2"
welding
• Hinge width:
gate
frame leaf 2-1/8" - 2-1/2"
• Capacity
660 lbs.

welding welding
welding on frame
A LL DIMENSIONS ARE APPR O XIM ATE .
