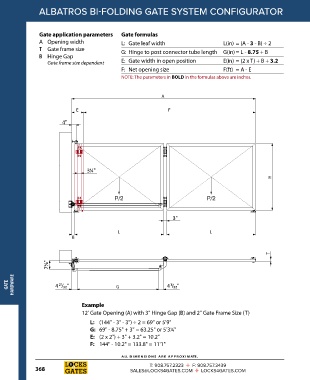

ALBATROS BI-FOLDING GATE SYSTEM CONFIGURATOR

Gate application parameters Gate formulas
A Opening width L: Gate leaf width L(in) = (A - 3 - B) ÷ 2
T Gate frame size G: Hinge to post connector tube length G(in) = L - 8.75 + B
B Hinge Gap
Gate frame size dependent E: Gate width in open position E(in) = (2 x T) + B + 3.2
F: Net opening size F(ft) = A - E
NOTE: The parameters in BOLD in the formulas above are inches.

4"

3¼"

3"

7⅝"

HARDWARE 4²¹/₃₂" 4³/₃₂"
GATE

Example
12' Gate Opening (A) with 3" Hinge Gap (B) and 2" Gate Frame Size (T)
L: (144" - 3" - 3") ÷ 2 = 69" or 5'9"
G: 69" - 8.75" + 3" = 63.25" or 5'3¼"
E: (2 x 2") + 3" + 3.2" = 10.2"
F: 144" - 10.2" = 133.8" = 11'1"

A LL DIMENSIONS ARE APPR O XIM ATE .
