ALBATROS BI-FOLDING GATE SYSTEM

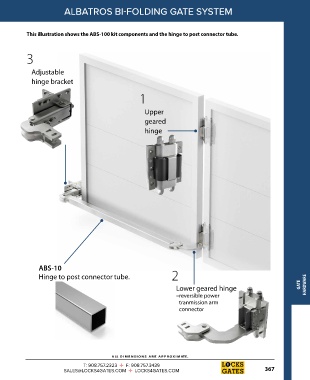

This illustration shows the ABS-100 kit components and the hinge to post connector tube.
3
Adjustable
hinge bracket
1
Upper
geared
hinge
ABS-10
Hinge to post connector tube. 2
Lower geared hinge GATE HARDWARE
– reversible power
tranmission arm
connector
