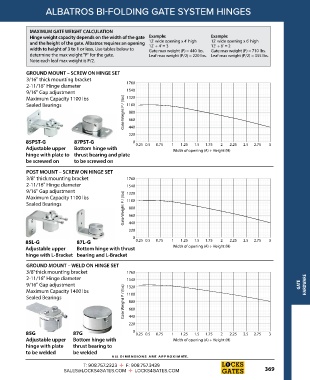

ALBATROS BI-FOLDING GATE SYSTEM HINGES

MAXIMUM GATE WEIGHT CALCULATION
Hinge weight capacity depends on the width of the gate Example: Example:
and the height of the gate. Albatros requires an opening 12' wide opening x 4' high 12' wide opening x 6' high
12' ÷ 6' = 2
12' ÷ 4' = 3
width to height of 3 to 1 or less. Use tables below to Gate max weight (P) = 440 lbs. Gate max weight (P) = 710 lbs.
determine the max weight "P" for the gate. Leaf max weight (P/2) = 220 lbs. Leaf max weight (P/2) = 355 lbs.
Note each leaf max weight is P/2.

GROUND MOUNT – SCREW ON HINGE SET
3/16" thick mounting bracket
2-11/16" Hinge diameter 1760
9/16" Gap adjustment 1540
Gate Weight P / (lbs) 880
Maximum Capacity 1100 lbs 1320
Sealed Bearings 1100

660
440
220
85PST-G 87PST-G 0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3
Adjustable upper Bottom hinge with Width of opening (A) ÷ Height (H)
hinge with plate to thrust bearing and plate
be screwed on to be screwed on
POST MOUNT – SCREW ON HINGE SET
3/8" thick mounting bracket 1760
2-11/16" Hinge diameter 1540
9/16" Gap adjustment 1320
Gate Weight P / (lbs) 880
Maximum Capacity 1100 lbs 1100
Sealed Bearings

660
440
220
0
85L-G 87L-G 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3
Adjustable upper Bottom hinge with thrust Width of opening (A) ÷ Height (H)
hinge with L-Bracket bearing and L-Bracket

GROUND MOUNT – WELD ON HINGE SET
3/8"thick mounting bracket 1760
2-11/16" Hinge diameter 1540
9/16" Gap adjustment 1320 GATE HARDWARE
Gate Weight P / (lbs) 880
Maximum Capacity 1400 lbs 1100
Sealed Bearings

660
440
220
85G 87G 0 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5 2.75 3
Adjustable upper Bottom hinge with Width of opening (A) ÷ Height (H)
hinge with plate thrust bearing to
to be welded be welded
A LL DIMENSIONS ARE APPR O XIM ATE .
