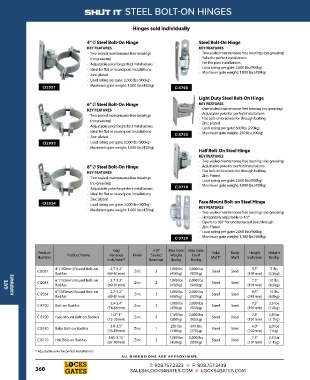

Page 362 - CATALOG

STEEL BOLT-ON HINGES

Hinges sold individually

4" Ø Steel Bolt-On Hinge Steel Bolt-On Hinge
KEY FEATURES KEY FEATURES
• Two sealed maintenance free bearings • Two sealed maintenance free bearings (no greasing)
(no greasing) • Yoke for perfect installations
• Adjustable yoke for perfect installations • For flat post installations
• Ideal for flat or round post installations • Load rating per gate: 2,000 lbs (900kg)
• Zinc plated • Maximum gate weight: 1,000 lbs (450kg)
• Load rating per gate: 2,000 lbs (900kg)
CI2051 • Maximum gate weight: 1,000 lbs (450kg) CI3700
Light Duty Steel Bolt-On Hinge
6" Ø Steel Bolt-On Hinge KEY FEATURES
KEY FEATURES • One sealed maintenance free bearing (no greasing)
• Two sealed maintenance free bearings • Adjustable yoke for perfect installations
(no greasing) • Flat bolt-on brackets for through bolting
• Zinc plated
• Adjustable yoke for perfect installations • Load rating per gate: 600 lbs (270kg)
• Ideal for flat or round post installations • Maximum gate weight: 250 lbs (100kg)
• Zinc plated CI3750
CI2053 • Load rating per gate: 2,000 lbs (900kg)
• Maximum gate weight: 1,000 lbs (450kg)
Half Bolt-On Steel Hinge
KEY FEATURES
• Two sealed maintenance free bearings (no greasing)
8" Ø Steel Bolt-On Hinge • Adjustable yoke for perfect installations
KEY FEATURES • Flat bolt-on brackets for through bolting
• Two sealed maintenance free bearings • Zinc Plated
(no greasing) • Load rating per gate: 2,000 lbs (900kg)
• Maximum gate weight: 1,000 lbs (450kg)
• Adjustable yoke for perfect installations CI3770
• Ideal for flat or round post installations
• Zinc plated
CI2054 • Load rating per gate: 2,000 lbs (900kg) Face Mount Bolt-on Steel Hinge
• Maximum gate weight: 1,000 lbs (450kg) KEY FEATURES
• Two sealed maintenance free bearings (no greasing)
• Horizontally adjustable to 1/2"
• Opens to 180° for unobstructed pass through
• Zinc Plated
• Load rating per gate: 2,000 lbs (900kg)
CI3720 • Maximum gate weight: 1,100 lbs (500kg)

Gap # Of Max Gate Max Gate
Product Product Name Variance Finish Sealed Weight Load Yoke Body Height Weight
Number Mat’l* Mat’l inch/mm lbs/kg
Inch/mm** Bearings lbs/kg lbs/kg
4” (102mm) Round Bolt-on 2.7-3.2" 1,000 lbs 2,000 lbs 5.5" 5 lbs
CI2051 BadAss (69-81mm) Zinc 2 (450kg) (900kg) Steel Steel (191mm) (2.3kg)
HARDWARE
10 lbs
2.7-3.2"
7.5"
GATE CI2053 6” (152mm) Round Bolt-on (69-81mm) Zinc 2 1,000 lbs 2,000 lbs Steel Steel (191mm) (4.5kg)
BadAss
(900kg)
(450kg)
9.5"
15 lbs
2.7-3.2"
8” (203mm) Round Bolt-on
CI2054
(900kg)
BadAss (69-81mm) Zinc 2 1,000 lbs 2,000 lbs Steel Steel (241mm) (6.8kg)
(450kg)
2.9-3.4" 1,000 lbs 2,000 lbs 7.5" 3.5 lbs
CI3700 Bolt-on BadAss Zinc 2 Steel Steel
(74-86mm) (450kg) (900kg) (191mm) (1.6kg)
1/2"-1" 1,100 lbs 2,000 lbs 7.5" 3.8 lbs
CI3720 Face Mount Bolt-on BadAss Zinc 2 Steel Steel
(12-25mm) (500kg) (900kg) (191mm) (1.7kg)
3.0-3.5" 250 lbs 600 lbs 4.0" 2.0 lbs
CI3750 Baby Bolt-on BadAss Zinc 1 Steel Steel
(76-89mm) (110kg) (270kg) (102mm) (1kg)
2.65-3.15" 1,000 lbs 2,000 lbs 7.5" 2.5 lbs
CI3770 Half Bolt-on BadAss Zinc 2 Steel Steel
(67-80mm) (450kg) (900kg) (191mm) (1.1kg)
* Adjustable yoke for perfect installations.
A LL DIMENSIONS ARE APPR O XIM ATE .
