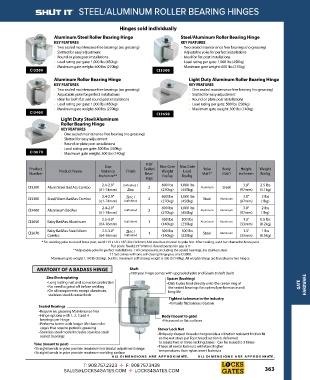

STEEL/ALUMINUM ROLLER BEARING HINGES

Hinges sold individually

Aluminum/Steel Roller Bearing Hinge Steel/Aluminum Roller Bearing Hinge
KEY FEATURES KEY FEATURES
• Two sealed maintenance free bearings (no greasing) • Two sealed maintenance free bearings (no greasing)
• Slotted for easy adjustment • Adjustable yoke for perfect installations
• Round or plate post installations • Ideal for flat post installations
• Load rating per gate: 1,000 lbs (450kg) • Load rating per gate: 1,000 lbs (450kg)
• Maximum gate weight: 600 lbs (270kg) • Maximum gate weight: 600 lbs (270kg)
CI3200 CI3300

Aluminum Roller Bearing Hinge Light Duty Aluminum Roller Bearing Hinge
KEY FEATURES KEY FEATURES
• Two sealed maintenance free bearings (no greasing) • One sealed maintenance free bearing (no greasing)
• Adjustable yoke for perfect installations • Slotted for easy adjustment
• Ideal for both flat and round post installations • Round or plate post installations
• Load rating per gate: 1,000 lbs (450kg) • Load rating per gate: 500 lbs (230kg)
• Maximum gate weight: 600 lbs (270kg) • Maximum gate weight: 300 lbs (140kg)
CI3400 CI3650
Light Duty Steel/Aluminum
Roller Bearing Hinge
KEY FEATURES
• One sealed maintenance free bearing (no greasing)
• Slotted for easy adjustment
• Round or plate post installations
• Load rating per gate: 500 lbs (230kg)
CI3670 • Maximum gate weight: 300 lbs (140kg)

# Of
Gap Max Gate Max Gate
Product Sealed Yoke Body Height Weight
Number Product Name Variance Finish Bear- Weight Load Mat’l* Mat’l inch/mm lbs/kg
Inch/mm** lbs/kg lbs/kg
ings
2.4-2.9" Unfinished / 600 lbs 1,000 lbs 3.8" 2.5 lbs
CI3200 Alum/Steel BadAss Combo 2 Aluminum Steel
(61-74mm) Zinc (270kg) (450kg) (97mm) (1.1kg)
2.4-2.9" Zinc / 600 lbs 1,000 lbs 3.8" 2 lbs
CI3300 Steel/Alum BadAss Combo 2 Steel Aluminum
(61-74mm) Unfinished (270kg) (450kg) (97mm) (1kg)
2.4-2.9" 600 lbs 1,000 lbs 3.8" 2 lbs
CI3400 Aluminum BadAss Unfinished 2 Aluminum Aluminum
(61-74mm) (270kg) (450kg) (97mm) (1kg)
2.5-3.0" 300 lbs 500 lbs 1.3" 0.5 lbs
CI3650 Baby BadAss Aluminum Unfinished 1 Aluminum Aluminum
(64-76mm) (140kg) (230kg) (33mm) (0.2kg)
Baby BadAss Steel/Alum 2.5-3.0" Zinc / 300 lbs 500 lbs 1.3" 1 lbs
CI3670 1 Steel Aluminum
Combo (64-76mm) Unfinished (140kg) (230kg) (33mm) (0.5kg)
* For welding yoke to round fence post, weld 11⁄2 x 1⁄2 x 1⁄8” (38x13x3mm) A36 steel bar channel to yoke first. After cooling, weld bar channel to fence post.
Flat posts: fixed 2.75” (70mm). Round posts: min gap is 0.
**Adjustable yoke for perfect installations. † All components, including the sealed bearings, are stainless steel.
† † Set comes with one self-closing hinge plus one CI3000.
Maximum gate weight 1,100 lb (500kg), but the maximum self-closing weight is 300 lb (140kg). All weight ratings are based upon two hinges.
ANATOMY OF A BADASS HINGE Shaft
• 100 year hinge comes with upgraded yoke and Grade 8 shaft (bolt)
Zinc Electroplating Spacer (bushing)
• Long lasting rust and corrosion protection • Distributes load directly onto the center ring of GATE
• No need to grind off before welding the sealed bearings for optimal performance and HARDWARE
• On all components except aluminum, long life
stainless steel & rusted look
Tightest tolerance in the industry
• Virtually frictionless rotation
Sealed Bearings
• Require no greasing Maintenance free
• Hinge options with 1, 2, 3 and 4 Body (mount to gate)
bearings per hinge • Fits round or flat surfaces
• Performs better with longer life than roller
cages that require periodic greasing Stover Lock Nut
• Stainless steel model includes stainless steel • Uniquely shaped threads that provide a vibration resistant friction fit
sealed bearings
so the nut stays put Top thread section is deformed
to create two or three locking zones - Can be reused 2-3 times
Yoke (mount to post)
• Straight bends in yoke provide maximum horizontal adjustment range • These all metal locknuts withstand higher
temperatures than nylon insert locknuts
• Straight bends in yoke provide maximum welding surface
A LL DIMENSIONS ARE APPR O XIM ATE . A LL DIMENSIONS ARE APPR O XIM ATE .
