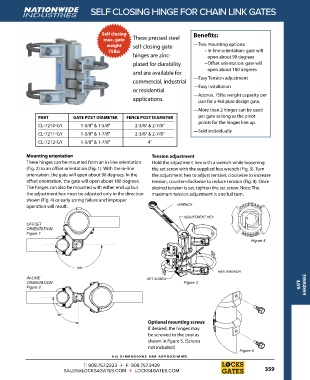

Page 361 - CATALOG

SELF CLOSING HINGE FOR CHAIN LINK GATES

Self closing Benefits:
max. gate These pressed steel
weight self-closing gate —Two mounting options:
75lbs • In-line orientation: gate will
hinges are zinc- open about 90 degrees

plated for durability • Offset orientation: gate will
open about 180 degrees
and are available for
commercial, industrial —Easy Tension adjustment
—Easy Installation
or residential
applications. — Approx. 75lbs weight capacity per
pair for a 4x6 pipe design gate.

— More than 2 hinges can be used
PART GATE POST DIAMETER FENCE POST DIAMETER per gate as long as the pivot
points for the hinges line up.
CL-7210-GY 1-3/8" & 1-5/8" 2-3/8" & 2-7/8"
—Sold individually
CL-7211-GY 1-3/8" & 1-7/8" 2-3/8" & 2-7/8"
CL-7212-GY 1-3/8" & 1-7/8" 4"

Mounting orientation Tension adjustment
These hinges can be mounted from an in-line orientation Hold the adjustment hex with a wrench while loosening
(Fig. 2) to an offset orientation (Fig. 1). With the in-line the set screw with the supplied hex wrench (Fig. 3). Turn
orientation, the gate will open about 90 degrees. In the the adjustment hex to adjust tension, clockwise to increase
offset orientation, the gate will open about 180 degrees. tension, counter-clockwise to reduce tension (Fig. 4). Once
The hinges can also be mounted with either end up but desired tension is set, tighten the set screw. Note: The
the adjustment hex must be adjusted only in the direction maximum tension adjustment is one full turn.
shown (Fig. 4) or early spring failure and improper
operation will result.

OFFSET
ORIENTATION
Figure 1
Figure 4

IN-LINE
ORIENTATION Figure 3 GATE
Figure 2 HARDWARE

Optional mounting screws
If desired, the hinges may
be screwed to the post as
shown in figure 5. (Screws
not included)
Figure 5
A LL DIMENSIONS ARE APPR O XIM ATE .
