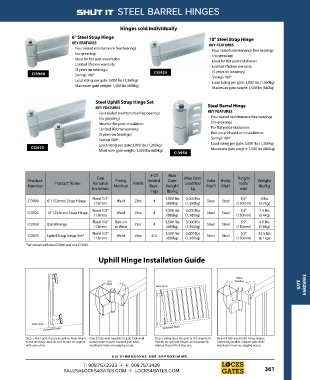

Page 363 - CATALOG

STEEL BARREL HINGES

Hinges sold individually

6" Steel Strap Hinge 10" Steel Strap Hinge
KEY FEATURES KEY FEATURES
• Four sealed maintenance free bearings • Four sealed maintenance free bearings
(no greasing) (no greasing)
• Ideal for flat post installation • Ideal for flat post installation
• Limited lifetime warranty • Limited lifetime warranty
(5 years on bearings)
CI3900 • Swings 1800 CI3925 (5 years on bearings)
• Load rating per gate: 3,000 lbs (1,360kg) • Swings 1800
• Load rating per gate: 3,000 lbs (1,360kg)
• Maximum gate weight: 1,500 lbs (680kg)
• Maximum gate weight: 1,500 lbs (680kg)

Steel Uphill Strap Hinge Set
KEY FEATURES Steel Barrel Hinge
• Four sealed maintenance free bearings KEY FEATURES
(no greasing) • Four sealed maintenance free bearings
• Ideal for flat post installation (no greasing)
• Limited lifetime warranty • For flat post installations
(5 years on bearings) • Bolt-on and weld-on installations
• Swings 1800 • Swings 1800
• Load rating per gate: 3,000 lbs (1,360kg) • Load rating per gate: 3,000 lbs (1,360kg)
CI3975 • Maximum gate weight: 1,500 lbs (680kg)
• Maximum gate weight: 1,500 lbs (680kg)
CI3950

# Of Max
Gap Max Gate Height
Product Product Name Variance Fixing Finish Sealed Gate Load lbs/ Yoke Body inch/ Weight
Number Method Bear- Weight Mat’l Mat’l lbs/kg
inch/mm kg mm
ings lbs/kg
Fixed 1/2" 1,500 lbs 3,000 lbs 5.9" 6 lbs
CI3900 6" (152mm) Strap Hinge Weld Zinc 4 Steel Steel
(13mm) (680kg) (1,360kg) (150mm) (2.7kg)
Fixed 1/2" 1,500 lbs 3,000 lbs 5.9" 7.5 lbs
CI3925 10" (254mm) Strap Hinge Weld Zinc 4 Steel Steel
(13mm) (680kg) (1,360kg) (150mm) (3.4kg)
Fixed 1/2" Bolt-on 1,500 lbs 3,000 lbs 5.9" 4.0 lbs
CI3950 Barrel Hinge Zinc 4 Steel Steel
(13mm) or Weld (680kg) (1,360kg) (150mm) (1.8kg)
Fixed 1/2" 1,500 lbs 3,000 lbs 5.9" 13.5 lbs
CI3975 Uphill Strap Hinge Set* Weld Zinc 4/4 Steel Steel
(13mm) (680kg) (1,360kg) (150mm) (6.1kg)
*Set comes with one CI3900 and one CI3925.

Uphill Hinge Installation Guide

Finish
Tack Welding
Weld GATE
Gate Open HARDWARE

Gate Open
Driveway Slope Driveway Slope

Step 1: Place gate in closed position. Align hinges Step 2: Tack weld top plate to gate. Tack weld Step 3: Swing open the gate to test alignment. Step 4: If tack welds hold, hinge may be
to the driveway slope. Be sure hinges are aligned bottom plate to post. Support gate while If welds do not hold, hinges are not properly completely welded. Support gate while
with each other. welding to insure no sagging occurs. aligned. Repeat from step one. welding to insure no sagging occurs.
A LL DIMENSIONS ARE APPR O XIM ATE .
