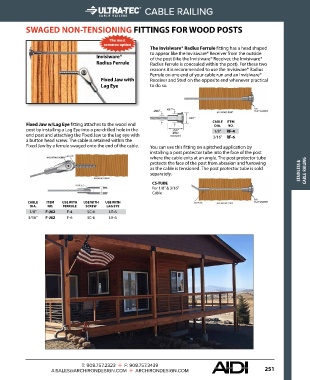

CABLE RAILING

SWAGED NON-TENSIONING FITTINGS FOR WOOD POSTS

The most
common option
The Invisiware® Radius Ferrule fitting has a head shaped
to appear like the Invisiware® Receiver from the outside
Invisiware® of the post (like the Invisiware® Receiver, the Invisiware®
Radius Ferrule Radius Ferrule is concealed within the post). For these two
reasons it is recommended to use the Invisiware® Radius
Ferrule on one end of your cable run and an Invisiware®
Fixed Jaw with Receiver and Stud on the opposite end whenever practical
Lag Eye to do so.

CABLE ITEM
Fixed Jaw w/Lag Eye fitting attaches to the wood end DIA. NO.
post by installing a Lag Eye into a pre-drilled hole in the 1/8" RF-4
end post and attaching the Fixed Jaw to the lag eye with 3/16" RF-6
a button head screw. The cable is retained within the
Fixed Jaw by a ferrule swaged onto the end of the cable. You can use this fitting on a pitched application by
installing a post protector tube into the face of the post
where the cable exits at an angle. The post protector tube
protects the face of the post from abrasion and furrowing
as the cable is tensioned. The post protector tube is sold
separately. STAINLESS & CABLE RAILING
CS-TUBE
For 1/8" & 3/16"
Cable

CABLE ITEM USE WITH USE WITH USE WITH
DIA. NO. FERRULE SCREW LAG EYE
1/8" F-J62 F-4 SC-6 LE-6
3/16" F-J62 F-6 SC-6 LE-6
