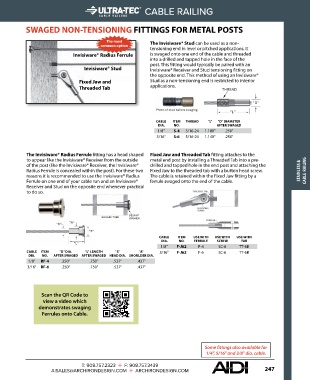

CABLE RAILING

SWAGED NON-TENSIONING FITTINGS FOR METAL POSTS

The most The Invisiware® Stud can be used as a non-
common option
tensioning end in level or pitched applications. It
Invisiware® Radius Ferrule is swaged onto one end of the cable and threaded
into a drilled and tapped hole in the face of the
post. This fitting would typically be paired with an
Invisiware® Stud Invisiware® Receiver and Stud tensioning fitting on
the opposite end. This method of using an Invisiware®
Fixed Jaw and Stud as a non-tensioning end is restricted to interior
Threaded Tab applications.

CABLE ITEM THREAD "L" "D" DIAMETER
DIA. NO. AFTER SWAGED
1/8" S-4 5/16-24 1.180" .250"
3/16" S-6 5/16-24 1.140" .250"

The Invisiware® Radius Ferrule fitting has a head shaped Fixed Jaw and Threaded Tab fitting attaches to the
to appear like the Invisiware® Receiver from the outside metal end post by installing a Threaded Tab into a pre-
of the post (like the Invisiware® Receiver, the Invisiware® drilled and tapped hole in the end post and attaching the
Radius Ferrule is concealed within the post). For these two Fixed Jaw to the threaded tab with a button head screw. STAINLESS & CABLE RAILING
reasons it is recommended to use the Invisiware® Radius The cable is retained within the Fixed Jaw fitting by a
Ferrule on one end of your cable run and an Invisiware® ferrule swaged onto the end of the cable.
Receiver and Stud on the opposite end whenever practical
to do so.

CABLE ITEM USE WITH USE WITH USE WITH
DIA. NO. FERRULE SCREW TAB
1/8" F-J62 F-4 SC-6 TT-6B
CABLE ITEM "D" DIA. "L" LENGTH "S" "A" 3/16" F-J62 F-6 SC-6 TT-6B
DIA. NO. AFTER SWAGED AFTER SWAGED HEAD DIA. SHOULDER DIA.
1/8" RF-4 .250" .750" .537" .437"
3/16" RF-6 .250" .750" .537" .437"

Scan the QR Code to
view a video which
demonstrates swaging
Ferrules onto Cable.

Some fittings also available for
1/4", 5/16" and 3/8" dia. cable.
