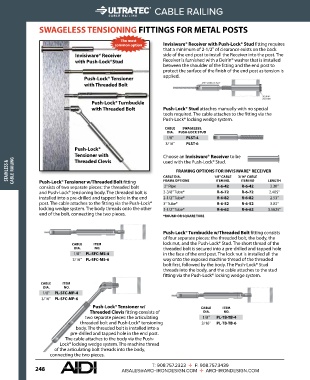

CABLE RAILING

SWAGELESS TENSIONING FITTINGS FOR METAL POSTS

The most
common option Invisiware® Receiver with Push-Lock® Stud fitting requires
that a minimum of 2-1/2" of clearance exists on the back
Invisiware® Receiver side of the end post to install the Receiver into the post. The
with Push-Lock®Stud Receiver is furnished with a Delrin® washer that is installed
between the shoulder of the fitting and the end post to
protect the surface of the finish of the end post as tension is
Push-Lock® Tensioner applied.
with Threaded Bolt

Push-Lock® Turnbuckle
with Threaded Bolt Push-Lock® Stud attaches manually with no special
tools required. The cable attaches to the fitting via the
Push-Lock® locking wedge system.
CABLE SWAGELESS.
DIA. PUSH-LOCK STUD
1/8" PLST-4
3/16" PLST-6
Push-Lock®
Tensioner with Choose an Invisiware® Receiver to be
Threaded Clevis
used with the Push-Lock® Stud.
STAINLESS & CABLE RAILING CABLE DIA. 1/8" CABLE 3/16" CABLE
FRAMING OPTIONS FOR INVISIWARE® RECEIVER
Push-Lock® Tensioner w/Threaded Bolt fitting
2.30"
2" Pipe
R-6-42
R-6-42
consists of two separate pieces: the threaded bolt FRAME OPTIONS ITEM NO. ITEM NO LENGTH
and Push-Lock® tensioning body. The threaded bolt is 2-3/8" Tube* R-6-72 R-6-72 2.405"
installed into a pre-drilled and tapped hole in the end 2-1/2" Tube* R-6-82 R-6-82 2.53"
post. The cable attaches to the fitting via the Push-Lock® 3" Tube* R-6-52 R-6-52 3.03"
locking wedge system. The body threads onto the other 3-1/2" Tube* R-6-62 R-6-62 3.5625"
end of the bolt, connecting the two pieces. *ROUND OR SQUARE TUBE

Push-Lock® Turnbuckle w/Threaded Bolt fitting consists
of four separate pieces: the threaded bolt, the body, the
CABLE ITEM lock nut, and the Push-Lock® Stud. The short thread of the
DIA. NO. threaded bolt is secured into a pre-drilled and tapped hole
1/8" PL-SFC-MS-4 in the face of the end post. The lock nut is installed all the
3/16" PL-SFC-MS-6 way onto the exposed machine thread of the threaded
bolt first, followed by the body. The Push-Lock® Stud
threads into the body, and the cable attaches to the stud
fitting via the Push-Lock® locking wedge system.
CABLE ITEM
DIA. NO.
1/8" PL-SFC-MP-4
3/16" PL-SFC-MP-6
Push-Lock® Tensioner w/ CABLE ITEM
Threaded Clevis fitting consists of DIA. NO.
two separate pieces: the articulating 1/8" PL-TB-TB-4
threaded bolt and Push-Lock® tensioning 3/16" PL-TB-TB-6
body. The threaded bolt is installed into a
pre-drilled and tapped hole in the end post.
The cable attaches to the body via the Push-
Lock® locking wedge system. The machine thread
of the articulating bolt threads into the body,
connecting the two pieces.
