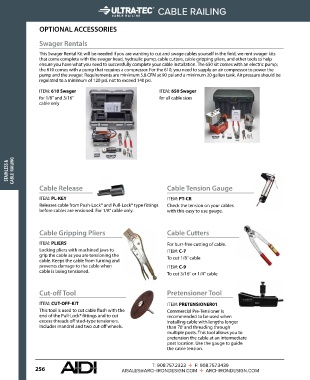

CABLE RAILING

OPTIONAL ACCESSORIES

Swager Rentals

This Swager Rental Kit will be needed if you are wanting to cut and swage cables yourself in the field, we rent swager kits
that come complete with the swager head, hydraulic pump, cable cutters, cable gripping pliers, and other tools to help
ensure you have what you need to successfully complete your cable installation. The 650 kit comes with an electric pump;
the 610 comes with a pump that requires a compressor. For the 610, you need to supply an air compressor to power the
pump and the swager. Requirements are minimum 5.8 CFM at 90 psi and a minimum 20 gallon tank. Air pressure should be
regulated to a minimum of 120 psi, not to exceed 140 psi.

ITEM: 610 Swager ITEM: 650 Swager
for 1/8" and 3/16" for all cable sizes
cable only

STAINLESS & CABLE RAILING

Cable Release Cable Tension Gauge

ITEM: PL-KEY ITEM: PT-CR
Releases cable from Push-Lock® and Pull-Lock® type fittings Check the tension on your cables
before cables are ensioned. For 1/8” cable only. with this easy to use gauge.

Cable Gripping Pliers Cable Cutters

ITEM: PLIERS For burr-free cutting of cable.
Locking pliers with machined jaws to ITEM: C-7
grip the cable as you are tensioning the
cable. Keeps the cable from turning and To cut 1/8" cable
prevents damage to the cable when ITEM: C-9
cable is being tensioned.
To cut 3/16" or 1/4" cable

Cut-off Tool Pretensioner Tool

ITEM: CUT-OFF-KIT ITEM: PRETENSIONER01
This tool is used to cut cable flush with the Commercial Pre-Tensioner is
end of the Pull-Lock® fittings and to cut recommended to be used when
excess threads off stud-type tensioners. installing cable with lengths longer
Includes mandrel and two cut-off wheels. than 70’ and threading through
multiple posts. This tool allows you to
pretension the cable at an intermediate
post location. Use the gauge to guide
the cable tension.
