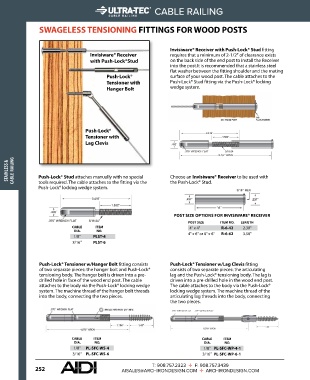

Page 254 - CATALOG

CABLE RAILING

SWAGELESS TENSIONING FITTINGS FOR WOOD POSTS

Invisiware® Receiver with Push-Lock® Stud fitting
Invisiware® Receiver requires that a minimum of 2-1/2" of clearance exists
with Push-Lock®Stud on the back side of the end post to install the Receiver
into the post.It is recommended that a stainless steel
flat washer between the fitting shoulder and the mating
Push-Lock® surface of your wood post. The cable attaches to the
Tensioner with Push-Lock® Stud fitting via the Push-Lock® locking
Hanger Bolt wedge system.

Push-Lock®
Tensioner with
Lag Clevis

STAINLESS & CABLE RAILING Push-Lock® Stud attaches manually with no special Choose an Invisiware® Receiver to be used with

tools required. The cable attaches to the fitting via the
Push-Lock® locking wedge system. the Push-Lock® Stud.

POST SIZE OPTIONS FOR INVISIWARE® RECEIVER
POST SIZE ITEM NO. LENGTH
CABLE ITEM 4" x 4" R-6-42 2.30"
DIA. NO. 4" x 6" or 6" x 6" R-6-62 3.56"
1/8" PLST-4
3/16" PLST-6

Push-Lock® Tensioner w/Hanger Bolt fitting consists Push-Lock® Tensioner w/Lag Clevis fitting
of two separate pieces: the hanger bolt and Push-Lock® consists of two separate pieces: the articulating
tensioning body. The hanger bolt is driven into a pre- lag and the Push-Lock® tensioning body. The lag is
drilled hole in face of the wood end post. The cable driven into a pre-drilled hole in the wood end post.
attaches to the body via the Push-Lock® locking wedge The cable attaches to the body via the Push-Lock®
system. The machine thread of the hanger bolt threads locking wedge system. The machine thread of the
into the body, connecting the two pieces. articulating lag threads into the body, connecting
the two pieces.

CABLE ITEM CABLE ITEM
DIA. NO. DIA. NO.
1/8" PL-SFC-WS-4 1/8" PL-SFC-WP-4-1
3/16" PL-SFC-WS-6 3/16" PL-SFC-WP-6-1
