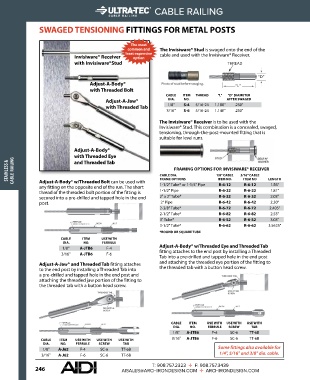

Page 248 - CATALOG

CABLE RAILING

SWAGED TENSIONING FITTINGS FOR METAL POSTS

The most
common and The Invisiware® Stud is swaged onto the end of the
least expensive cable and used with the Invisiware® Receiver.
Invisiware® Receiver option
with Invisiware®Stud

Adjust-A-Body®
with Threaded Bolt
CABLE ITEM THREAD "L" "D" DIAMETER
Adjust-A-Jaw® DIA. NO. AFTER SWAGED
with Threaded Tab 1/8" S-4 5/16-24 1.180" .250"
3/16" S-6 5/16-24 1.140" .250"

The Invisiware® Receiver is to be used with the
Invisiware® Stud. This combination is a concealed, swaged,
tensioning, through-the-post-mounted fitting that is
suitable for level runs.

Adjust-A-Body®
with Threaded Eye
and Threaded Tab
STAINLESS & CABLE RAILING CABLE DIA. 1/8" CABLE 3/16" CABLE LENGTH
FRAMING OPTIONS FOR INVISIWARE® RECEIVER

Adjust-A-Body® w/Threaded Bolt can be used with
R-6-12
R-6-12
1-1/2" Tube* or 1-1/4" Pipe
any fitting on the opposite end of the run. The short FRAME OPTIONS ITEM NO. ITEM NO 1.56"
thread of the threaded bolt portion of the fitting is 1-1/2" Pipe R-6-22 R-6-22 1.81"
secured into a pre-drilled and tapped hole in the end 2" x 2" Tube* R-6-32 R-6-32 2.03"
post. 2" Pipe R-6-42 R-6-42 2.30"
2-3/8" Tube* R-6-72 R-6-72 2.405"
2-1/2" Tube* R-6-82 R-6-82 2.53"
3" Tube* R-6-52 R-6-52 3.03"
3-1/2" Tube* R-6-62 R-6-62 3.5625"
*ROUND OR SQUARE TUBE
CABLE ITEM USE WITH
DIA. NO. FERRULE
1/8" A-JTB6 F-4 Adjust-A-Body® w/Threaded Eye and Threaded Tab
fitting attaches to the end post by installing a Threaded
3/16" A-JTB6 F-6
Tab into a pre-drilled and tapped hole in the end post
Adjust-A-Jaw® and Threaded Tab fitting attaches and attaching the threaded eye portion of the fitting to
to the end post by installing a Threaded Tab into the threaded tab with a button head screw.
a pre-drilled and tapped hole in the end post and
attaching the threaded jaw portion of the fitting to
the threaded tab with a button head screw.

CABLE ITEM USE WITH USE WITH USE WITH
DIA. NO. FERRULE SCREW TAB
1/8" A-JTE6 F-4 SC-6 TT-6B
CABLE ITEM USE WITH USE WITH USE WITH 3/16" A-JTE6 F-6 SC-6 TT-6B
DIA. NO. FERRULE SCREW TAB
1/8" A-J62 F-4 SC-6 TT-6B Some fittings also available for
3/16" A-J62 F-6 SC-6 TT-6B 1/4", 5/16" and 3/8" dia. cable.
