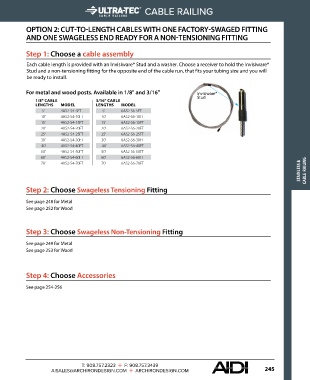

Page 247 - CATALOG

CABLE RAILING

OPTION 2: CUT-TO-LENGTH CABLES WITH ONE FACTORY-SWAGED FITTING
AND ONE SWAGELESS END READY FOR A NON-TENSIONING FITTING

Step 1: Choose a cable assembly

Each cable length is provided with an Invisiware® Stud and a washer. Choose a receiver to hold the Invisiware®
Stud and a non-tensioning fitting for the opposite end of the cable run, that fits your tubing size and you will
be ready to install.

For metal and wood posts. Available in 1/8" and 3/16" Invisiware®
Stud
1/8" CABLE 3/16" CABLE
LENGTHS MODEL LENGTHS MODEL
5' 4AS2-S4-5FT 5' 6AS2-S6-5FT
10' 4AS2-S4-10FT 10' 6AS2-S6-10FT
15' 4AS2-S4-15FT 15' 6AS2-S6-15FT
20' 4AS2-S4-20FT 20' 6AS2-S6-20FT
25' 4AS2-S4-25FT 25' 6AS2-S6-25FT
30' 4AS2-S4-30FT 30' 6AS2-S6-30FT
40' 4AS2-S4-40FT 40' 6AS2-S6-40FT
50' 4AS2-S4-50FT 50' 6AS2-S6-50FT
60' 4AS2-S4-60FT 60' 6AS2-S6-60FT
STAINLESS & CABLE RAILING
70' 4AS2-S4-70FT 70' 6AS2-S6-70FT

Step 2: Choose Swageless Tensioning Fitting

See page 248 for Metal
See page 252 for Wood

Step 3: Choose Swageless Non-Tensioning Fitting

See page 249 for Metal
See page 253 for Wood

Step 4: Choose Accessories

See page 254-256
