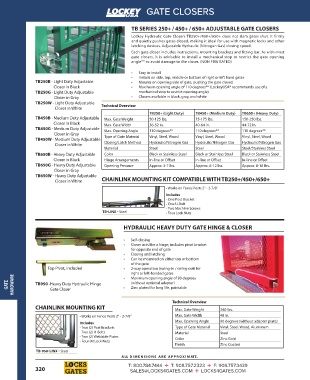

Page 322 - Catalog

GATE CLOSERS

TB SERIES 250+ / 450+ / 650+ ADJUSTABLE GATE CLOSERS

Lockey Hydraulic Gate Closers TB250+/450+/650+ does not slam gates shut. It firmly
and quietly pushes gates closed, making it ideal for use with magnetic locks and other
latching devices. Adjustable Hydraulic (Nitrogen Gas) closing speed.
Each gate closer includes instructions, mounting brackets and fitting bar. As with most
gate closers, it is advisable to install a mechanical stop to restrict the gate opening
angle** to avoid damage to the closer. (NON FIRE RATED)

• Easy to install
• Installs on side, top, middle or bottom of right or left hand gates
TB250B - Light Duty Adjustable • Mounts on opening side of gate, pushing the gate closed
Closer in Black • Maximum opening angle of 110 degrees** (LockeyUSA® recommends use of a
TB250G - Light Duty Adjustable mechanical stop to restrict opening angle)
Closer in Gray • Closers available in black, gray, and white
TB250W - Light Duty Adjustable
Closer in White Technical Overview
TB250+ (Light Duty) TB450+ (Medium Duty) TB650+ (Heavy Duty)
TB450B - Medium Duty Adjustable Max. Gate Weight 50-125 lbs. 75-175 lbs. 150-250 lbs.
Closer in Black Max. Gate Width 36-52 in. 40-64 in. 44-72 in.
TB450G - Medium Duty Adjustable Max. Opening Angle 110 degrees** 110 degrees** 110 degrees**
Closer in Gray
TB450W - Medium Duty Adjustable Type of Gate Material Vinyl, Steel, Wood Vinyl, Steel, Wood Vinyl, Steel, Wood
Closer in White Closing/Latch Method Hydraulic/Nitrogen Gas Hydraulic/Nitrogen Gas Hydraulic/Nitrogen Gas
Material Steel Steel Steel/Stainless Steel
TB650B - Heavy Duty Adjustable Color Black or Stainless Steel Black or Stainless Steel Black or Stainless Steel
Closer in Black Hinge Arrangements In-line or Offset In-line or Offset In-line or Offset
TB650G - Heavy Duty Adjustable Opening Pressure Approx. 3-7 lbs. Approx. 6-12 lbs. Approx. 8-18 lbs.
Closer in Gray
TB650W - Heavy Duty Adjustable
Closer in White CHAINLINK MOUNTING KIT COMPATIBLE WITH TB250+/450+/650+
• Works on Fence Posts 2" - 2-7/8"
Includes
- One Post Bracket
- One U-Bolt
- Two Machine Screws
TBLINX Steel - Four Lock Nuts

HYDRAULIC HEAVY DUTY GATE HINGE & CLOSER

• Self-closing
• Closer acts like a hinge, includes pivot bracket
for opposite end of gate
• Closing and latching
• Can be mounted on either top or bottom
of the gate
Top Pivot, included • 2-way operation (swing-in / swing-out) for
right or left-handed gates
HARDWARE Gate Closer • Zinc plated for long life, paintable
•
Maximum opening angle of 90 degrees
GATE TB950 - Heavy Duty Hydraulic Hinge (without optional adapter)

Technical Overview
CHAINLINK MOUNTING KIT Max. Gate Weight 240 lbs.

• Works on Fence Posts 2" - 2-7/8" Max. Gate Width 48 in.
Includes Max. Opening Angle 90 degrees (without adapter plate)
- Two (2) Post Brackets Type of Gate Material Vinyl, Steel, Wood, Aluminum
- Two (2) U-Bolts Material Steel
- Two (2) Weldable Plates Color Zinc Gold
- Four (4) Lock Nuts
Finish Zinc Coated
TB950LINX Steel
A LL DIMENSIONS ARE APPR O XIM ATE .
