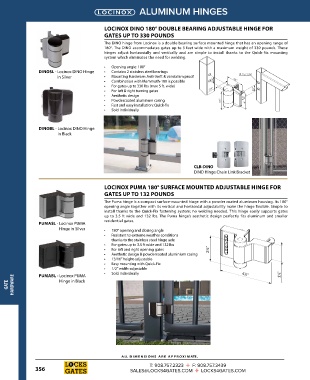

Page 358 - CATALOG

ALUMINUM HINGES

LOCINOX DINO 180° DOUBLE BEARING ADJUSTABLE HINGE FOR
GATES UP TO 330 POUNDS
The DINO hinge from Locinox is a double bearing surface mounted hinge that has an opening range of
180°. The DINO accommodates gates up to 5 feet wide with a maximum weight of 330 pounds. These
hinges adjust horizontally and vertically and are simple to install thanks to the Quick-Fix mounting
system which eliminates the need for welding.

• Opening angle: 180°
DINOSL - Locinox DINO Hinge • Contains 2 stainless steel bearings Ø ⁄₁₆" (4x)
in Silver • Mounting Hardware: Anti-theft & vandalism proof
• Combination with Mammoth-180 is possible 1½" 4¼"
• For gates up to 330 lbs (max 5 ft. wide)
• For left & right turning gates 2⅜” 1½"
• Aesthetic design
• Powdercoated aluminum casing 4½" 4"
• Fast and easy installation: Quick-fix
• Sold individually

DINO 330 lb (150 kg)
DINOBL - Locinox DINO Hinge
in Black

CLB-DINO
DINO Hinge Chain Link Bracket

LOCINOX PUMA 180° SURFACE MOUNTED ADJUSTABLE HINGE FOR
GATES UP TO 132 POUNDS
The Puma hinge is a compact surface-mounted hinge with a powder coated aluminum housing. Its 180°
opening angle together with its vertical and horizontal adjustability make the hinge flexible. Simple to
install thanks to the Quick-Fix fastening system; no welding needed. This hinge easily supports gates
up to 3.5 ft wide and 132 lbs. The Puma hinge’s aesthetic design perfectly fits aluminum and smaller
residential gates.
PUMASL - Locinox PUMA
Hinge in Silver • 180° opening and closing angle
• Resistant to extreme weather conditions
thanks to the stainless steel hinge axle
• For gates up to 3.5 ft wide and 132 lbs
• For left and right opening gates 2⅜"
• Aesthetic design & powdercoated aluminium casing
• 13/16” height-adjustable
• Easy mounting with Quick-Fix
• • 1/2” width-adjustable 4¼" 1½"
Sold individually
PUMABL - Locinox PUMA
HARDWARE
GATE Hinge in Black

A LL DIMENSIONS ARE APPR O XIM ATE .
