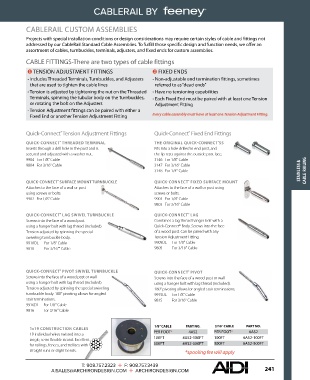

CABLERAIL BY

CABLERAIL CUSTOM ASSEMBLIES

Projects with special installation conditions or design considerations may require certain styles of cable and fittings not
addressed by our CableRail Standard Cable Assemblies. To fulfill those specific design and function needs, we offer an
assortment of cables, turnbuckles, terminals, adjusters, and fixed ends for custom assemblies.

CABLE FITTINGS-There are two types of cable fittings

❶ TENSION ADJUSTMENT FITTINGS ❷ FIXED ENDS
- Includes Threaded Terminals, Turnbuckles, and Adjusters - Non-adjustable end termination fittings, sometimes
that are used to tighten the cable lines referred to as “dead ends”
- Tension is adjusted by tightening the nut on the Threaded - Have no tensioning capabilities
Terminals, spinning the tubular body on the Turnbuckles, - Each Fixed End must be paired with at least one Tension
or rotating the bolt on the Adjusters Adjustment Fitting
- Tension Adjustment fittings can be paired with either a
Fixed End or another Tension Adjustment Fitting Every cable assembly must have at least one Tension Adjustment Fitting.

Quick-Connect Tension Adjustment Fittings Quick-Connect Fixed End Fittings
®
®
QUICK-CONNECT THREADED TERMINAL THE ORIGINAL QUICK-CONNECT SS
®
®
Inserts through a drill hole in the post and is Fits into a hole drilled in end post, and
secured and adjusted with a washer nut. the lip rests against the outside post face.
9904 For 1/8" Cable 3146 For 1/8" Cable
9804 For 3/16" Cable 3147 For 3/16" Cable
3148 For 1/4" Cable STAINLESS & CABLE RAILING

QUICK-CONNECT SURFACE MOUNT TURNBUCKLE QUICK-CONNECT FIXED SURFACE MOUNT
®
®
Attaches to the face of a wall or post Attaches to the face of a wall or post using
using screws or bolts. screws or bolts.
9902 For 1/8" Cable 9903 For 1/8" Cable
9803 For 3/16" Cable

QUICK-CONNECT LAG SWIVEL TURNBUCKLE QUICK-CONNECT LAG
®
®
Screws into the face of a wood post Combines a lag thread hanger bolt with a
using a hanger bolt with lag thread (included). Quick-Connect® Body. Screws into the face
Tension adjusted by spinning the special of a wood post. Can be paired with any
swiveling turnbuckle body. Tension Adjustment Fitting.
9910DL For 1/8" Cable 9905DL For 1/8" Cable
9810 For 3/16"" Cable 9805 For 3/16" Cable

QUICK-CONNECT PIVOT SWIVEL TURNBUCKLE QUICK-CONNECT PIVOT
®
®
Screws into the face of a wood post or wall Screws into the face of a wood post or wall
using a hanger bolt with lag thread (included). using a hanger bolt with lag thread (included).
Tension adjusted by spinning the special swiveling 180° pivoting allows for angled stair terminations.
turnbuckle body. 180° pivoting allows for angled 9915DL For 1/8" Cable
stair terminations. 9815 For 3/16" Cable
9916DL For 1/8" Cable
9816 For 3/16" Cable

1x19 CONSTRUCTION CABLES 1/8" CABLE PART NO. 3/16" CABLE PART NO.
19 individual wires twisted into a PER FOOT* 4AS2 PER FOOT* 6AS2
single, semi-flexible strand. Excellent 100FT 4AS2-100FT 100FT 6AS2-100FT
for railings, fences, and trellises with 500FT 4AS2-500FT 500FT 6AS2-500FT
straight runs or slight bends. *spooling fee will apply
