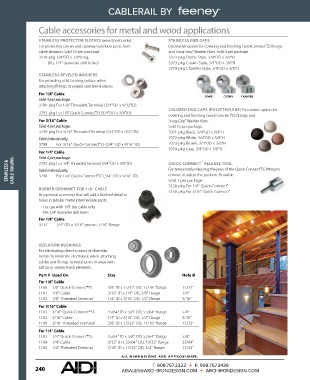

CABLERAIL BY

Cable accessories for metal and wood applications

STAINLESS PROTECTOR SLEEVES (wood posts only) STAINLESS END CAPS
For protecting corner and stairway transition posts from Decorative option for covering and finishing Quick Connect SS fittings
®
®
cable abrasion. Sold 10 per package and Snug-Grip Washer Nuts. Sold 4 per package.
3210-pkg 1/4"OD x 7/8"long, 3372-pkg Dome Style, 3/4"OD x 3/8"H
(fits 1/4" diameter drill holes) 3373-pkg Crown Style, 3/4"OD x 3/8"H
3374-pkg Chamfer Style, 3/4"OD x 3/8"H
STAINLESS BEVELED WASHERS
For providing a flat bearing surface when
at taching fittings at angled stair terminations.
For 1/8" Cable DOME CROWN CHAMFER
Sold 4 per package.
3799-pkg For 1/8" Threaded Terminal (3/4"OD x 9/32"ID)
COLORED END CAPS (POLYETHYLENE) Decorative option for
®
3792-pkg For 1/8" Quick-Connect SS (3/4"OD x 3/8"ID)
®
covering and finishing Quick-Connect SS fittings and
For 3/16" Cable Snug-Grip Washer Nuts.
®
Sold 4 per package. Sold 10 per package.
3799-pkg For 3/16" Threaded Terminal (3/4"OD x 9/32"ID) 7071-pkg Black, 3/4"OD x 3/8"H
Sold Individually 7072-pkg White, 3/4"OD x 3/8"H
®
3798 For 3/16" Quick-Connect SS (3/4" OD x 9/16" ID) 7073-pkg Brown, 3/4"OD x 3/8"H
7074-pkg Gray, 3/4"OD x 3/8"H
For 1/4" Cable
Sold 4 per package.
STAINLESS & CABLE RAILING 3792-pkg For 1/4" Threaded Terminal (3/4"OD x 3/8"ID) QUICK-CONNECT RELEASE TOOL ®
®
For temporarily releasing the jaws of the Quick-Connect SS fitting to
Sold Individually
remove or adjust the position. Reusable.
®
For 1/4" Quick-Connect SS (3/4" OD x 9/16" ID)
3798
3128-pkg For 1/8" Quick-Connect
RUBBER GROMMET FOR 1/8" CABLE Sold 1 per package. ® ®
3158-pkg For 3/16" Quick-Connect
An optional accessory that will add a finished detail to
holes in tubular metal intermediate posts.
- For use with 1/8" dia. cable only
- Fits 1/4" diameter drill holes
For 1/8" Cable
3213 1/4" OD x 3/16" groove, 7/16" flange

ISOLATION BUSHINGS
For eliminating direct contact of dissimilar
metals to minimize electrolysis when attaching
cables and fittings to metal posts in areas with
salt air or similar harsh elements.
Part # Used On Size Hole Ø
For 1/8" Cable
1100 1/8" Quick-Connect®SS 3/8" ID x 15/32" OD, 11/16" flange 15/32"
1101 1/8" Cable 3/16" ID x 1/4" OD, 3/8" flange 1/4"
1102 1/8" Threaded Terminal 1/4" ID x 5/16" OD, 1/2" flange 5/16"
For 3/16" Cable
1103 3/16" Quick-Connect®SS 35/64" ID x 5/8" OD, 55/64" flange 5/8"
1102 3/16" Cable 1/4" ID x 5/16" OD, 1/2" flange 5/16"
1100 3/16" Threaded Terminal 3/8" ID x 15/32" OD, 11/16" flange 15/32"
For 1/4" Cable
1103 1/4" Quick-Connect®SS 35/64" ID x 5/8" OD, 55/64" flange 5/8"
1104 1/4" Cable 9/32" ID x 23/64" OD, 19/32" flange 23/64"
1105 1/4" Threaded Terminal 7/16" ID x 17/32" OD, 3/4" flange 17/32"
A LL DIMENSIONS ARE APPR O XIM ATE .
