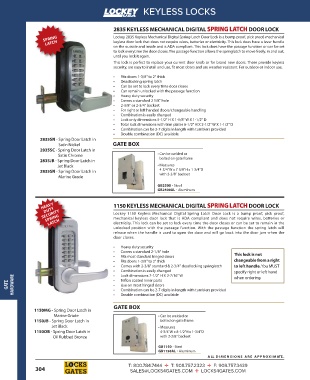

Page 306 - Catalog

KEYLESS LOCKS

2835 KEYLESS MECHANICAL DIGITAL SPRING LATCH DOOR LOCK
SPRING Lockey 2835 Keyless Mechanical Digital Spring Latch Door Lock is a bump proof, pick proof, mechanical
LATCH keyless door lock that does not require wires, batteries or electricity. This lock does have a lever handle
on the outside and inside and is ADA compliant. This lock does have the passage function or can be set
to lock everytime the door closes. The passage function allows the springlatch to move freely, in and out,
until you lock it again.
This lock is perfect to replace your current door knob or for brand new doors. These provide keyless
security, are easy to install and use, fit most doors and are weather resistant. For outdoor or indoor use.
• Fits doors 1-3/8" to 2" thick
• Deadlocking spring latch
• Can be set to lock every time door closes
• Can remain unlocked with the passage function
• Heavy duty security
• Covers a standard 2 1/8" hole
• 2-3/8" or 2-3/4" backset
• For right or left handed doors/changeable handling
• Combination is easily changed
• Lock only dimensions 5-1/2" H X 1-5/8" W X 1-1/2" D
• Total lock dimensions with trim plates 6-1/2" H X 2-1/2" W X 1-1/2" D
• Combination can be 2-7 digits in length with tumblers provided
• Double combination (DC) available
2835SN - Spring Door Latch in
Satin Nickel GATE BOX
2835SC - Spring Door Latch in
Satin Chrome • Can be welded or
2835JB - Spring Door Latch in bolted on gate frame
Jet Black • Measures
2835SN - Spring Door Latch in 4-3/4"W x 7-5/8"H x 1-3/4"D
Marine Grade with 2-3/8" backset
GB2500 Steel
GB2500AL Aluminum

HEAVY 1150 KEYLESS MECHANICAL DIGITAL SPRING LATCH DOOR LOCK
DUTY
SECURITY Lockey 1150 Keyless Mechanical Digital Spring Latch Door Lock is a bump proof, pick proof,
SPRING
mechanical keyless door lock that is ADA compliant and does not require wires, batteries or
LATCH
electricity. This lock can be set to lock every time the door closes or can be set to remain in the
unlocked position with the passage function. With the passage function the spring latch will
release when the handle is used to open the door and will go back into the door jam when the
door closes.
• Heavy duty security
• Covers a standard 2-1/8" hole This lock is not
• Fits most standard hinged doors
• Fits doors 1-3/8" to 2" thick changeable from a right
• Comes with 2-3/8" standard & 2-3/4" deadlocking springlatch to left handle. You MUST
• • Combination is easily changed specify right or left hand
Lock dimensions 7-1/2" H X 2-7/16" W
HARDWARE • • Combination can be 2-7 digits in length with tumblers provided
when ordering.
GATE • • Teflon coated inner parts
Use on most hinged doors
Double combination (DC) available

GATE BOX
1150MG - Spring Door Latch in
Marine Grade • Can be welded or
1150JB - Spring Door Latch in bolted on gate frame
Jet Black • Measures
1150OB - Spring Door Latch in 4-3/4"W x 8-1/2"H x 1-3/4"D
Oil Rubbed Bronze with 2-3/8" backset

GB1150 Steel
GB1150AL Aluminum
A LL DIMENSIONS ARE APPR O XIM ATE .
