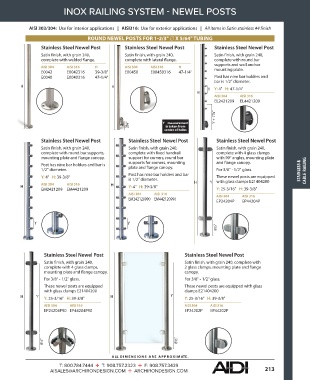

INOX RAILING SYSTEM NEWEL POSTS
AISI 303/304: Use for interior applications | AISI316: Use for exterior applications | All items in Satin stainless #4 finish
ROUND NEWEL POSTS FOR 12/3" X 5/64" TUBING
Stainless Steel Newel Post Stainless Steel Newel Post Stainless Steel Newel Post
Satin finish, with grain 240, Satin finish, with grain 240, Satin finish, with grain 240,
complete with welded flange. complete with lateral flange. complete with round bar
supports and wall anchor
AISI 304 AISI 316 H AISI 304 AISI 316 H mounting plate.
E0042 E0042316 39-3/8" E00450 E00450316 47-1/4"
E0040 E0040316 47-1/4" Post has nine bar holders and
bar is 1/2" diameter.
H H Y Y: 4" H: 47-1/4"
H
AISI 304 AISI 316
EL2421209 EL4421209
Y + 7⅞"
2¾" Y measurement
is taken from
center of holes
Stainless Steel Newel Post Stainless Steel Newel Post Stainless Steel Newel Post
Satin finish, with grain 240, Satin finish, with grain 240, Satin finish, with grain 240,
complete with round bar supports, complete with fixed handrail complete with 4 glass clamps
mounting plate and flange canopy. support for corners, round bar with 90° angles, mounting plate
supports for corners, mounting and flange canopy.
Post has nine bar holders and bar is plate and flange canopy.
1/2" diameter. For 3/8" - 1/2" glass. STAINLESS & CABLE RAILING
Post has nine bar holders and bar
Y: 4" H: 39-3/8" is 1/2" diameter. These newel posts are equipped
AISI 304 AISI 316 H H Y with glass clamps E21404200
H Y: 4" H: 39-3/8"
EM2421209 EM4421209 Y: 25-3/16" H: 39-3/8"
AISI 304 AISI 316 AISI 304 AISI 316
EM242120990 EM442120990 EP24204P EP44204P
Y Y
8½"
Stainless Steel Newel Post Stainless Steel Newel Post
Satin finish, with grain 240, Satin finish, with grain 240, complete with
complete with 4 glass clamps, 2 glass clamps, mounting plate and flange
mounting plate and flange canopy. canopy.
For 3/8" - 1/2" glass. For 3/8" - 1/2" glass.
These newel posts are equipped These newel posts are equipped with glass
with glass clamps E21404200 clamps E21404200
H Y Y: 25-3/16" H: 39-3/8" H Y Y: 25-3/16" H: 39-3/8"
AISI 304 AISI 316 AISI 304 AISI 316
EP24204P90 EP44204P90 EP24202P EP44202P
8½" 8½"
A LL DIMENSIONS ARE APPR O XIM ATE .
