CABLERAIL BY FEENEY®

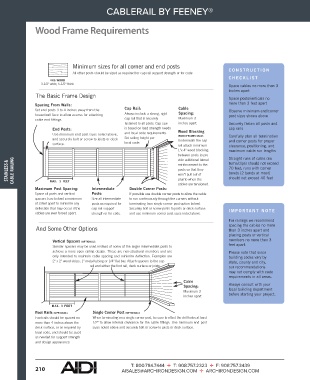

Wood Frame Requirements

Minimum sizes for all corner and end posts CONSTRUCTIO N
All other posts should be sized as required for cap rail support strength or for code
CHECKLIS T
4X6 WOOD
3-1/2’’ wide, 5-1/2’’ thick
Space cables no more than 3
inches apart
The Basic Frame Design Space posts/verticals no
Spacing From Walls: more than 3 feet apart
Set end posts 3 to 4 inches away from the Cap Rail: Cable Observe minimum end/corner
house/wall face to allow access for attaching Always include a strong, rigid Spacing: post sizes shown above
cable end fittings. cap rail that is securely Maximum 3
fastened to all posts. Cap size inches apart. Securely fasten all posts and
End Posts: is based on load strength needs Wood Blocking cap rails
Use minimum end post sizes noted above, and local code requirements. (WOOD FRAMES ONLY): Carefully plan all termination
and securely bolt or screw to joists or deck Set railing height per Underneath the cap and corner posts for proper
surface. local code. rail attach minimum clearance, positioning, and
1"x 4" wood blocking maximum cable run lengths
between posts to pro- Straight runs of cable (no
vide additional lateral
STAINLESS & CABLE RAILING reinforcement to the turns/dips) should not exceed
70 feet; runs with corner
posts so that they
bends (2 bends at most)
won’t pull out of
should not exceed 40 feet
plumb when the
MAX. 3 FEET
Maximum Post Spacing: Intermediate Double Corner Posts: cables are tensioned.
Space all posts and vertical Posts: If possible use double corner posts to allow the cable
spacers (see below) a maximum Size all intermediate to run continuously through the corners without
of 3 feet apart to minimize any posts as required for terminating (see single corner post option below).
deflection that may occur if the cap rail support Securely bolt or screw posts to joists or deck surface IMPOR TANT NOT E
cables are ever forced apart. strength or for code. and use minimum corner post sizes noted above.
For railings we recommend
spacing the cables no more
And Some Other Options than 3 inches apart and
placing posts or vertical
members no more than 3
Vertical Spacers (OPTIONAL):
Slender spacers may be used instead of some of the larger intermediate posts to feet apart.
achieve a more open railing design. These are non-structural members and are Please note that since
only intended to maintain cable spacing and minimize deflection. Examples are building codes vary by
2" x 2" wood strips, 1" metal tubing or 1/4" flat bar. Attach spacers to the cap state, county and city,
rail and either the foot rail, deck surface or joists. our recommendations
may not comply with code
requirements in all areas.
Cable
Spacing: Always consult with your
Maximum 3 local building department
inches apart. before starting your project.
MAX. 3 FEET
Foot Rails (OPTIONAL): Single Corner Post (OPTIONAL):
Foot rails should be spaced no When terminating on a single corner post, be sure to offset the drill holes at least
more than 4 inches above the 1/2" to allow internal clearance for the cable fittings. Use minimum end post
deck surface, or as required by sizes noted above and securely bolt or screw to joists or deck surface.
local code, and should be sized
as needed for support strength
and design appearance.
