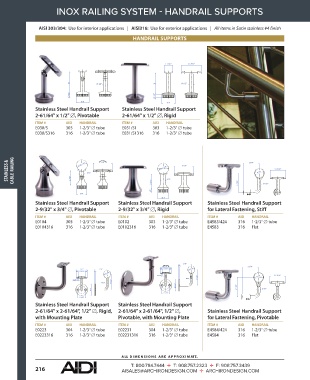

INOX RAILING SYSTEM HANDRAIL SUPPORTS

AISI 303/304: Use for interior applications | AISI316: Use for exterior applications | All items in Satin stainless #4 finish

HANDRAIL SUPPORTS

1 1/16” 2 17/32”

H Ø 1/2” H Ø 1/2”

13/32” 13/32”
Ø A Ø A
Stainless Steel Handrail Support Stainless Steel Handrail Support
2-61/64" x 1/2" , Pivotable 2-61/64" x 1/2" , Rigid
ITEM # AISI HANDRAIL ITEM # AISI HANDRAIL
E030/S 303 1-2/3" tube E031/S1 303 1-2/3" tube
E030/S316 316 1-2/3" tube E031/S1316 316 1-2/3" tube

STAINLESS & CABLE RAILING 2 9/32” Ø 1 1/3” - 1 2/3” Ø B 2 1/2” Ø 1 1/3” - 1 2/3” Ø B 2 1/2” 2 3/4” Ø 1 2/3” 2 19/32”

1/2” 2 9/32” 3 7/32” Ø 1/2”
Ø A
Ø A
Stainless Steel Handrail Support Stainless Steel Handrail Support Stainless Steel Handrail Support
2-9/32" x 3/4" , Pivotable 2-9/32" x 3/4" , Rigid for Lateral Fastening, Stiff
ITEM # AISI HANDRAIL ITEM # AISI HANDRAIL ITEM # AISI HANDRAIL
E0104 303 1-2/3" tube E0102 303 1-2/3" tube E4583/424 316 1-2/3" tube
E0104316 316 1-2/3" tube E0102316 316 1-2/3" tube E4583 316 Flat

2 7/8”
1/4”
2 1/2” 2 3/4”
2 1/2” 2 7/8” 7/16” 1 21/32” 7/16” Ø 33, 7 - 42, 4
7/16” 1 21/32” 7/16” 6
Ø 1 1/3” - 1 2/3”
Ø 1/4” 3 11/32” Ø 1 2/3” 2 15/16”
Ø1/2”
Ø 1/4”
Ø 1/2” 3 11/32”
Ø 2 3/4” 3 7/32”
Ø 70 Ø 1/2”
1 13/16”
1 13/16”
Stainless Steel Handrail Support Stainless Steel Handrail Support
2-61/64" x 2-61/64", 1/2" , Rigid, 2-61/64" x 2-61/64", 1/2" , Stainless Steel Handrail Support
with Mounting Plate Pivotable, with Mounting Plate for Lateral Fastening, Pivotable
ITEM # AISI HANDRAIL ITEM # AISI HANDRAIL ITEM # AISI HANDRAIL
E0223 304 1-2/3" tube E02231 304 1-2/3" tube E4584/424 316 1-2/3" tube
E0223316 316 1-2/3" tube E02231316 316 1-2/3" tube E4584 316 Flat

A LL DIMENSIONS ARE APPR O XIM ATE .
