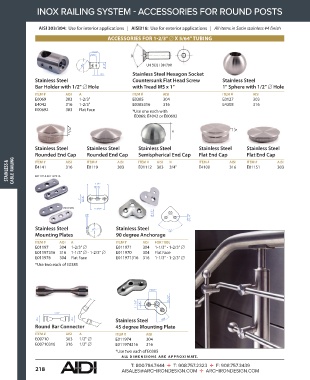

INOX RAILING SYSTEM ACCESSORIES FOR ROUND POSTS

AISI 303/304: Use for interior applications | AISI316: Use for exterior applications | All items in Satin stainless #4 finish

ACCESSORIES FOR 12/3" X 5/64" TUBING

1 3/16”
25/32”
Ø A Ø 7/8” UNI 5933 / DIN 7991
Ø B Stainless Steel Hexagon Socket
Stainless Steel Countersunk Flat Head Screw Stainless Steel
Bar Holder with 1/2" Hole with Tread M5 x 1" 1" Sphere with 1/2" Hole
ITEM # AISI A ITEM # AISI ITEM # AISI
E0069 303 1-2/3" E0385 304 E0127 303
E4042 316 1-2/3" E0385316 316 E4308 316
E00692 303 Flat Face * Use one each with
E0069, E4042 or E00692

11 /32" H ⅛"

Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Rounded End Cap Rounded End Cap Semispherical End Cap Flat End Cap AISI Flat End Cap AISI
STAINLESS & CABLE RAILING E4141 316 E0119 303 E01112 303 3/4" E4100 316 E01151 303
AISI
AISI
AISI
ITEM #
ITEM #
ITEM #
ITEM #
H
ITEM #
E01197 & E01197316
2 1/2”
Ø 1/3” 1/8”
1” Ø 1/4” Ø A
E011976 1 13/20”
Ø 1/3”
2 1/2” 1/8”
Ø 1/3” Ø 1/4”
Stainless Steel Ø A Stainless Steel
1” Ø 1/4” 90°
Mounting Plates 90 degree Anchorage
1 13/20”
ITEM # AISI A ITEM # AISI FOR TUBE
E01197 304 1-2/3" E011971 304 1-1/3" - 1-2/3"
E01197316 316 1-1/3" - 1-2/3" E011970 304 Flat Face
E011976 304 Flat Face E011971316 316 1-1/3" - 1-2/3"
* Use two each of E0385

27/32”
11/32”
1 1/16” 1/4”

3 1/3”
Ø A Ø A Stainless Steel 450
Round Bar Connector 45 degree Mounting Plate

ITEM # AISI A ITEM # AISI
E00710 303 1/2" E011974 304
E00710316 316 1/2" E011974316 316
* Use two each of E0385
A LL DIMENSIONS ARE APPR O XIM ATE .
