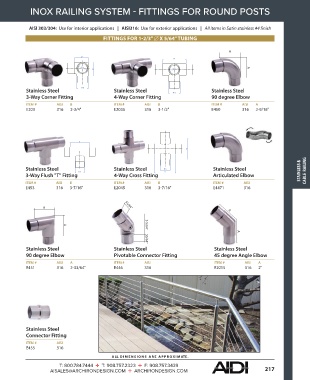

INOX RAILING SYSTEM FITTINGS FOR ROUND POSTS

AISI 303/304: Use for interior applications | AISI316: Use for exterior applications | All items in Satin stainless #4 finish

FITTINGS FOR 12/3" X 5/64" TUBING

A
B
B
Ø A A
B Ø A

Ø A
Stainless Steel Stainless Steel Ø A Stainless Steel
3-Way Corner Fitting 4-Way Corner Fitting 90 degree Elbow
ITEM # AISI B ITEM # AISI B ITEM # AISI A
E203 316 2-3/4" E2035 316 3-1/2" E450 316 2-9/16"

B
B

Stainless Steel Stainless Steel Ø A Stainless Steel
Ø A B STAINLESS & CABLE RAILING
3-Way Flush "T" Fitting 4-Way Cross Fitting Articulated Elbow
ITEM # AISI B ITEM # AISI B ITEM # AISI
E453 316 3-7/16" E2045 316 3-7/16" E4471 316

A 55/64"
A

A
2-5/64"
A

55/64"
Stainless Steel Stainless Steel Stainless Steel
90 degree Elbow Pivotable Connector Fitting 45 degree Angle Elbow
ITEM # AISI A ITEM # AISI ITEM # AISI A
E451 316 2-33/64" E446 316 E2015 316 2"

Stainless Steel
Connector Fitting
ITEM # AISI
E455 316
A LL DIMENSIONS ARE APPR O XIM ATE .
