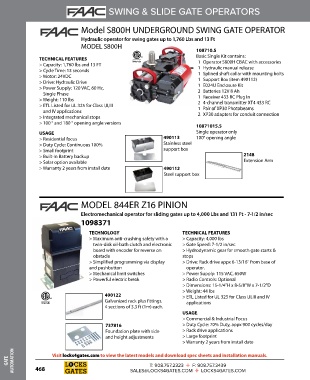

Page 470 - CATALOG

SWING & SLIDE GATE OPERATORS

Model S800H UNDERGROUND SWING GATE OPERATOR

Hydraulic operator for swing gates up to 1,760 Lbs and 13 Ft
MODEL S800H
108710.5
Basic Single Kit contains:
TECHNICAL FEATURES
> Capacity: 1,760 lbs and 13 FT 1 Operator S800H CBAC with accessories
> Cycle Time: 13 seconds 1 Hydraulic manual release
> Motor: 24VDC 1 Splined shaft collar with mounting bolts
> Drive: Hydraulic Drive 1 Support Box (item 490112)
> Power Supply: 120 VAC, 60 Hz, 1 E024U Enclosure Kit
Single Phase 2 Batteries 12V 8 Ah
> Weight: 110 lbs 1 Receiver 433 RC Plug In
> ETL Listed for UL 325 for Class I,II,III 2 4-channel transmitter XT4 433 RC
and IV applications 1 Pair of XP30 Photobeams
> Integrated mechanical stops 2 XP30 adapters for conduit connection
> 100 ° and 180 ° opening angle versions
10871015.5
USAGE Single operator only
> Residential focus 490113 100° opening angle
> Duty Cycle: Continuous 100% Stainless steel
> Small footprint support box
> Built-in Battery backup 2148
> Solar option available Extension Arm
> Warranty 2 years from install date 490112
Steel support box

MODEL 844ER Z16 PINION

Electromechanical operator for sliding gates up to 4,000 Lbs and 131 Ft - 7-1/2 in/sec
1098371

TECHNOLOGY TECHNICAL FEATURES
> Maximum anti-crushing safety with a > Capacity: 4,000 lbs
twin-disk oil-bath clutch and electronic > Gate Speed: 7-1/2 in/sec
board with encoder for reverse on > Hydrodynamic gear for smooth gate starts &
obstacle stops
> Simplified programming via display > Drive: Rack drive appx 6-13/16" from base of
and pushbutton operator.
> Mechanical limit switches > Power Supply: 115 VAC, 650W
> Powerful electric break > Radio Controls: Optional
> Dimensions: 15-1/4"H x 8-5/8"W x 7-1/2"D
> Weight: 44 lbs
490122 > ETL Listed for UL 325 for Class I,II,III and IV
Galvanized rack plus fittings. applications
4 sections of 3.3 ft (1m) each.
USAGE
> Commercial & Industrial Focus
737816 > Duty Cycle: 70% Duty, appx 900 cycles/day
Foundation plate with side > Rack drive applications
and height adjustments > Large footprint
> Warranty 2 years from install date
