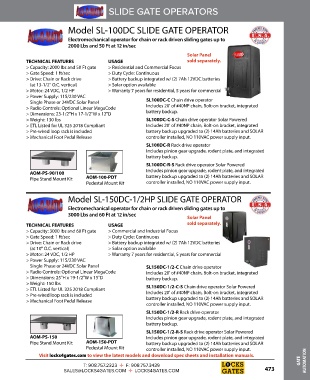

Page 475 - CATALOG

SLIDE GATE OPERATORS

Model SL-100DC SLIDE GATE OPERATOR

Electromechanical operator for chain or rack driven sliding gates up to
2000 Lbs and 50 Ft at 12 in/sec
Solar Panel
TECHNICAL FEATURES USAGE sold separately.
> Capacity: 2000 lbs and 50 Ft gate > Residential and Commercial Focus
> Gate Speed: 1 ft/sec > Duty Cycle: Continuous
> Drive: Chain or Rack drive > Battery backup integrated w/ (2) 7Ah 12VDC batteries
(at 13-1/2" O.C. vertical) > Solar option available
> Motor: 24 VDC, 1/2 HP > Warranty 7 years for residential, 5 years for commercial
> Power Supply: 115/230 VAC
Single Phase or 24VDC Solar Panel SL100DC-C Chain drive operator
> Radio Controls: Optional Linear MegaCode Includes 20' of #40NP chain, Bolt-on bracket, integrated
> Dimensions: 23-1/2"H x 17-1/2"W x 12"D battery backup.
> Weight: 130 lbs SL100DC-C-S Chain drive operator Solar Powered
> ETL Listed for UL 325 2018 Compliant Includes 20' of #40NP chain, Bolt-on bracket, integrated
> Pre-wired loop rack is included battery backup upgraded to (2) 14Ah batteries and SOLAR
> Mechanical Foot Pedal Release controller installed, NO 110VAC power supply input.

SL100DC-R Rack drive operator
Includes pinion gear upgrade, rodent plate, and integrated
battery backup.
SL100DC-R-S Rack drive operator Solar Powered
AOM-PS-90/100 Includes pinion gear upgrade, rodent plate, and integrated
Pipe Stand Mount Kit AOM-100-PDT battery backup upgraded to (2) 14Ah batteries and SOLAR
Pedestal Mount Kit controller installed, NO 110VAC power supply input.

Model SL-150DC-1/2HP SLIDE GATE OPERATOR

Electromechanical operator for chain or rack driven sliding gates up to
3000 Lbs and 60 Ft at 12 in/sec Solar Panel

TECHNICAL FEATURES USAGE sold separately.
> Capacity: 3000 lbs and 60 Ft gate > Commercial and Industrial Focus
> Gate Speed: 1 ft/sec > Duty Cycle: Continuous
> Drive: Chain or Rack drive > Battery backup integrated w/ (2) 7Ah 12VDC batteries
(at 10" O.C. vertical) > Solar option available
> Motor: 24 VDC, 1/2 HP > Warranty 7 years for residential, 5 years for commercial
> Power Supply: 115/230 VAC
Single Phase or 24VDC Solar Panel SL150DC-1/2-C Chain drive operator
> Radio Controls: Optional Linear MegaCode Includes 20' of #40NP chain, Bolt-on bracket, integrated
> Dimensions: 25"H x 19-1/2"W x 15"D battery backup.
> Weight: 150 lbs
> ETL Listed for UL 325 2018 Compliant SL150DC-1/2-C-S Chain drive operator Solar Powered
> Pre-wired loop rack is included Includes 20' of #40NP chain, Bolt-on bracket, integrated
> Mechanical Foot Pedal Release battery backup upgraded to (2) 14Ah batteries and SOLAR
controller installed, NO 110VAC power supply input.
SL150DC-1/2-R Rack drive operator
Includes pinion gear upgrade, rodent plate, and integrated
battery backup.
SL150DC-1/2-R-S Rack drive operator Solar Powered
AOM-PS-150 Includes pinion gear upgrade, rodent plate, and integrated
Pipe Stand Mount Kit AOM-150-PDT battery backup upgraded to (2) 14Ah batteries and SOLAR
Pedestal Mount Kit controller installed, NO 110VAC power supply input.
Visit locks4gates.com to view the latest models and download spec sheets and installation manuals.
