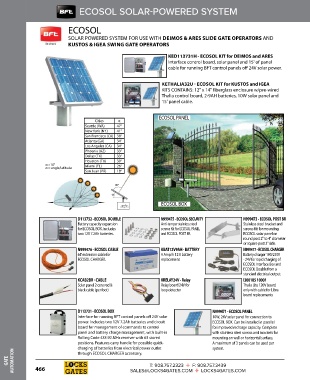

Page 468 - CATALOG

ECOSOL SOLAR-POWERED SYSTEM

ECOSOL

SOLAR POWERED SYSTEM FOR USE WITH DEIMOS & ARES SLIDE GATE OPERATORS AND
KUSTOS & IGEA SWING GATE OPERATORS

KED113731H - ECOSOL KIT for DEIMOS and ARES
Interface control board, solar panel and 15' of panel
cable for running BFT control panels off 24V solar power.

KETHALIA32U - ECOSOL KIT for KUSTOS and IGEA
KITS CONTAINS: 12" x 14" fiberglass enclosure w/pre-wired
Thalia control board, 2-9AH batteries, 10W solar panel and
15' panel cable.

eCosol panel
Cities α
Seattle (WA) 47°
New York (NY) 41°
San Francisco (CA) 38°
Atlanta (GA) 34°
Los Angeles (CA) 34°
Phoenix (AZ) 33°
Dallas (TX) 33°
Houston (TX) 30°
α >10° Miami (FL) 26°
α = angle/latitude
San Juan (PR) 18°

90°

α
eCosol box

D113732 - ECOSOL DOUBLE N999475 - ECOSOL SECURITY N999473 - ECOSOL POST BR
Battery capacity expansion Anti-tamper stainless steel Stainless steel bracket and
for ECOSOL BOX. Includes screws Kit for ECOSOL PANEL screws Kit for mounting
two 12V 7.2Ah batteries. and ECOSOL POST BR. ECOSOL solar panel on
round post 2" to 4" diameter
or square post 3" side.
N999476 - ECOSOL CABLE KBAT12V9AH - BATTERY N999477 - ECOSOL CHARGER
65’ extension cable for 9 Amp/h 12 V battery Battery charger 100/230V
ECOSOL CHARGER. replacement - 24V for rapid charging of
ECOSOL Interface Box and
ECOSOL Double from a
standard electrical output.
KCAB2BR - CABLE KRELAY24V - Relay I300185 10001
Solar panel 2 core red & Relay board 24V for Thalia Lite 120V board
black cable (per foot) loop detector only with cable for Libra
board replacements

D113731 - ECOSOL BOX N999471 - ECOSOL PANEL
Interface for running BFT control panels off 24V solar 10W, 24V solar panel for connection to
power. Includes two 12V 7.2Ah batteries and circuit ECOSOL BOX. Can be installed in parallel
board for management of commands to control for improved recharge capacity. Complete
panel and battery charge management, with built-in with stainless steel screws and brackets for
Rolling Code 433.92 MHz receiver with 63 stored mounting on wall or horizontal surface.
positions. Features carry handle for possible quick- A maximum of 3 panels can be used per
charging of batteries from electrical power outlet system.
AUTOMATION 466 SALES@LOCKS4GATES.COM ✛ LOCKS4GATES.COM
through ECOSOL CHARGER accessory.
