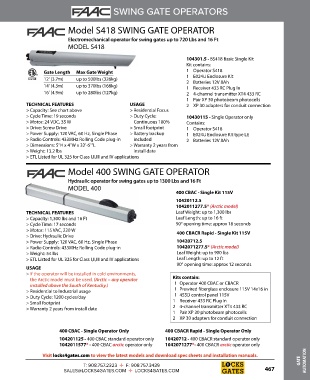

Page 469 - CATALOG

SWING GATE OPERATORS

Model S418 SWING GATE OPERATOR

Electromechanical operator for swing gates up to 720 Lbs and 16 Ft
MODEL S418

104301.5 - BS418 Basic Single Kit
Kit contains:
Gate Length Max Gate Weight 1 Operator S418
12' (3.7m) up to 500lbs (326kg) 1 E024U Enclosure Kit
2 Batteries 12V 8Ah
14' (4.3m) up to 370lbs (168kg) 1 Receiver 433 RC Plug In
16' (4.9m) up to 280lbs (127kg) 2 4-channel transmitter XT4 433 RC
1 Pair XP 30 photobeam photocells
TECHNICAL FEATURES USAGE 2 XP 30 adapters for conduit connection
> Capacity: See chart above > Residential Focus
> Cycle Time: 19 seconds > Duty Cycle: 10430115 - Single Operator only
> Motor: 24 VDC, 35 W Continuous 100% Contains:
> Drive: Screw Drive > Small footprint 1 Operator S418
> Power Supply: 120 VAC, 60 Hz, Single Phase > Battery backup 1 E024U Enclosure Kit type LE
> Radio Controls: 433MHz Rolling Code plug-in included 2 Batteries 12V 8Ah
> Dimensions: 5"H x 4"W x 32'-6""L > Warranty 2 years from
> Weight: 13.2 lbs install date
> ETL Listed for UL 325 for Class I,II,III and IV applications

Model 400 SWING GATE OPERATOR

Hydraulic operator for swing gates up to 1300 Lbs and 16 Ft
MODEL 400
400 CBAC - Single Kit 115V
10420112.5
1042011277.5* (Arctic model)
TECHNICAL FEATURES Leaf Weight: up to 1,300 lbs
> Capacity: 1,300 lbs and 16 Ft Leaf Length: up to 16 ft
> Cycle Time: 17 seconds 90° opening time: approx 18 seconds
> Motor: 115 VAC, 220 W 400 CBACR Rapid - Single Kit 115V
> Drive: Hydraulic Drive
> Power Supply: 120 VAC, 60 Hz, Single Phase 10420712.5
> Radio Controls: 433MHz Rolling Code plug-in 1042071277.5* (Arctic model)
> Weight: 54 lbs Leaf Weight: up to 900 lbs
> ETL Listed for UL 325 for Class I,II,III and IV applications Leaf Length: up to 12 ft
90° opening time: approx 12 seconds
USAGE
> If the operator will be installed in cold environments,
the Arctic model must be used. (Arctic = any operator Kits contain:
installed above the South of Kentucky.) 1 Operator 400 CBAC or CBACR
> Residential to Industrial usage 1 Prewired fiberglass enclosure 115V 14x16 in
> Duty Cycle: 1200 cycles/day 1 455D control panel 115V
> Small footprint 1 Receiver 433 RC Plug In
> Warranty 2 years from install date 2 4-channel transmitter XT4 433 RC
1 Pair XP 30 photobeam photocells
2 XP 30 adapters for conduit connection

400 CBAC - Single Operator Only 400 CBACR Rapid - Single Operator Only
104201125 - 400 CBAC standard operator only 10420712 - 400 CBACR standard operator only
1042011577* - 400 CBAC arctic operator only 1042071277*- 400 CBACR arctic operator only

Visit locks4gates.com to view the latest models and download spec sheets and installation manuals.
