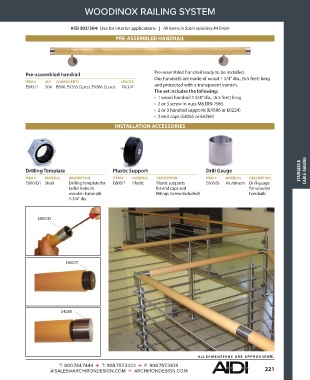

WOODINOX RAILING SYSTEM
AISI 303/304: Use for interior applications | All items in Satin stainless #4 finish
PREASSEMBLED HANDRAIL
Pre-assembled handrail Pre-assembled handrail ready to be installed.
Our handrails are made of wood 1 3/4” dia., (6.5 feet) long
ITEM # AISI COMPONENTS LENGTH
E695/1 304 E690, E4265 (2pcs), E4586 (2 pcs) 78-3/4" and protected with a transparent varnish.
The set includes the following:
• 1 wood handrail 1 3/4” dia., (6.5 feet) long
• 2 or 3 screw in nuts M6 DIN 7965
• 2 or 3 handrail supports (E4586 or E0224)
• 2 end caps (E4265 or E4260)
INSTALLATION ACCESSORIES
STAINLESS & CABLE RAILING
Drilling Template Plastic Support Drill Gauge
ITEM # MATERIAL DESCRIPTION ITEM # MATERIAL DESCRIPTION ITEM # MATERIAL DESCRIPTION
E600/D1 Steel Drilling template for E600/T Plastic Plastic supports E600/D Aluminum Drill-gauge
radial holes in for end caps and for wooden
wooden handrails fittings (screw included) handrails
1-3/4" dia.
E600/D
E600/T
E4265
A LL DIMENSIONS ARE APPR O XIM ATE .
