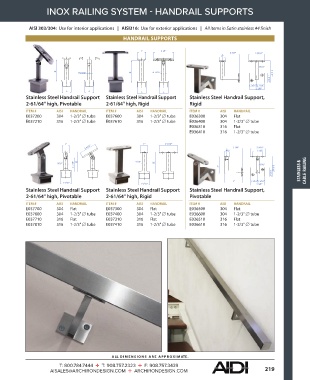

INOX RAILING SYSTEM HANDRAIL SUPPORTS

AISI 303/304: Use for interior applications | AISI316: Use for exterior applications | All items in Satin stainless #4 finish

HANDRAIL SUPPORTS

1” 2 1/2”
2 3/4” 2 9/16” 2 3/4” 2 9/16”
1” 7/8” 1 5/8”
1”
2 9/16” 9/16” 9/16”
H Ø 15/32” H Ø 15/32” 3 1/2” 3” 3 9/16”

2 1/16” 1 3/16” 1 3/16” 3” 1 3/16”1 3/16”
9/16” H 1 9/16” 1 9/16”
2 3/8” 2 3/8”
A A A A
Stainless Steel Handrail Support Stainless Steel Handrail Support Stainless Steel Handrail Support,
1 9/16”
2-61/64" high, Pivotable 2-61/64" high, Rigid Rigid
ITEM # AISI HANDRAIL ITEM # AISI HANDRAIL ITEM # AISI HANDRAIL
E037200 304 1-2/3" tube E037600 304 1-2/3" tube E036300 304 Flat
E037210 316 1-2/3" tube E037610 316 1-2/3" tube E036400 304 1-2/3" tube
E036310 316 Flat
E036410 316 1-2/3" tube

1” 1” 2 9/16”
2 9/16” 2 3/4” 2 9/16” 2 3/4” 2 9/16”
1” 7/8” 1 5/8”
2 1/16” 3 1/2” 3” 9/16” 3 9/16” STAINLESS & CABLE RAILING
9/16” H 9/16” H 9/16”

1 3/16” 1 3/16” 1 9/16” 3” 1 3/16”1 3/16” 1 9/16”
1 9/16” 1 9/16” 2 3/8” 2 3/8”
Stainless Steel Handrail Support Stainless Steel Handrail Support Stainless Steel Handrail Support,
2-61/64" high, Pivotable 2-61/64" high, Rigid Pivotable
ITEM # AISI HANDRAIL ITEM # AISI HANDRAIL ITEM # AISI HANDRAIL
E037700 304 Flat E037300 304 Flat E036500 304 Flat
E037800 304 1-2/3" tube E037400 304 1-2/3" tube E036600 304 1-2/3" tube
E037710 316 Flat E037310 316 Flat E036510 316 Flat
E037810 316 1” 1-2/3" tube E037410 316 1-2/3" tube E036610 316 1-2/3" tube
2 9/16”

9/16” H

1 9/16”

A LL DIMENSIONS ARE APPR O XIM ATE .
