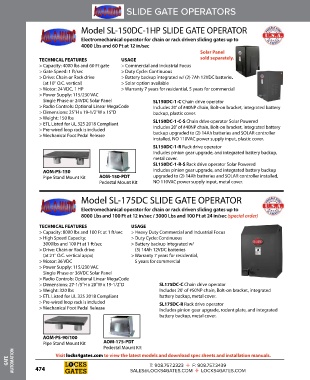

Page 476 - CATALOG

SLIDE GATE OPERATORS

Model SL-150DC-1HP SLIDE GATE OPERATOR

Electromechanical operator for chain or rack driven sliding gates up to
4000 Lbs and 60 Ft at 12 in/sec
Solar Panel
TECHNICAL FEATURES USAGE sold separately.
> Capacity: 4000 lbs and 60 Ft gate > Commercial and Industrial Focus
> Gate Speed: 1 ft/sec > Duty Cycle: Continuous
> Drive: Chain or Rack drive > Battery backup integrated w/ (2) 7Ah 12VDC batteries
(at 10" O.C. vertical) > Solar option available
> Motor: 24 VDC, 1 HP > Warranty 7 years for residential, 5 years for commercial
> Power Supply: 115/230 VAC
Single Phase or 24VDC Solar Panel SL150DC-1-C Chain drive operator
> Radio Controls: Optional Linear MegaCode Includes 20' of #40NP chain, Bolt-on bracket, integrated battery
> Dimensions: 25"H x 19-1/2"W x 15"D backup, plastic cover.
> Weight: 150 lbs
> ETL Listed for UL 325 2018 Compliant SL150DC-1-C-S Chain drive operator Solar Powered
> Pre-wired loop rack is included Includes 20' of #40NP chain, Bolt-on bracket, integrated battery
> Mechanical Foot Pedal Release backup upgraded to (2) 14Ah batteries and SOLAR controller
installed, NO 110VAC power supply input, plastic cover.
SL150DC-1-R Rack drive operator
Includes pinion gear upgrade, and integrated battery backup,
metal cover.
SL150DC-1-R-S Rack drive operator Solar Powered
AOM-PS-150 Includes pinion gear upgrade, and integrated battery backup
Pipe Stand Mount Kit AOM-150-PDT upgraded to (2) 14Ah batteries and SOLAR controller installed,
Pedestal Mount Kit NO 110VAC power supply input, metal cover.

Model SL-175DC SLIDE GATE OPERATOR

Electromechanical operator for chain or rack driven sliding gates up to
8000 Lbs and 100 Ft at 12 in/sec / 3000 Lbs and 100 Ft at 24 in/sec (special order)

TECHNICAL FEATURES USAGE
> Capacity: 8000 lbs and 100 Ft at 1 ft/sec > Heavy Duty Commercial and Industrial Focus
> High Speed Capacity: > Duty Cycle: Continuous
3000lbs and 100 Ft at 1 ft/sec > Battery backup integrated w/
> Drive: Chain or Rack drive (3) 14Ah 12VDC batteries
(at 21" O.C. vertical appx) > Warranty 7 years for residential,
> Motor: 36 VDC 5 years for commercial
> Power Supply: 115/230 VAC
Single Phase or 36VDC Solar Panel
> Radio Controls: Optional Linear MegaCode
> Dimensions: 27-1/5"H x 20"W x 19-1/2"D SL175DC-C Chain drive operator
> Weight: 320 lbs Includes 20' of #50NP chain, Bolt-on bracket, integrated
> ETL Listed for UL 325 2018 Compliant battery backup, metal cover.
> Pre-wired loop rack is included SL175DC-R Rack drive operator
> Mechanical Foot Pedal Release Includes pinion gear upgrade, rodent plate, and integrated
battery backup, metal cover.

AOM-PS-90/100
Pipe Stand Mount Kit AOM-175-PDT
Pedestal Mount Kit
