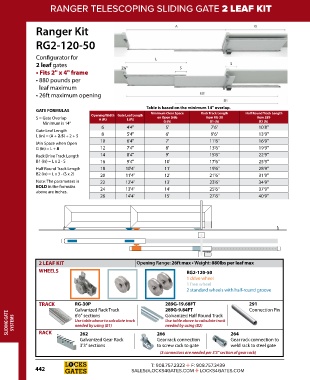

Page 444 - CATALOG

RANGER TELESCOPING SLIDING GATE 2 LEAF KIT

Ranger Kit

RG2-120-50

Configurator for
2 leaf gates 2⅜" S S
• Fits 2" x 4" frame
• 880 pounds per
leaf maximum
• 26ft maximum opening

Table is based on the minimum 14" overlap.
GATE FORMULAS
Opening Width Gate Leaf Length Minimum Clear Space Rack Track Length Half Round Track Length
S = Gate Overlap A (ft) L (ft) on Open Side Item RG-30 Item 289
Minimum is 14" G (ft) B1 (ft) B2 (ft)
6 4'4" 5' 7'6" 10'8"
Gate Leaf Length
L (in) = (A + 2.5) ÷ 2 + S 8 5'4" 6' 9'6" 13'9"
10 6'4" 7' 11'6" 16'9"
Min Space when Open
G (in) = L + 8 12 7'4" 8' 13'6" 19'9"
Rack Drive Track Length 14 8'4" 9' 15'6" 22'9"
B1 (in) = L x 2 - S 16 9'4" 10' 17'6" 25'9"
Half Round Track Length 18 10'4" 11' 19'6" 28'9"
B2 (in) = L x 3 - (S x 2) 20 11'4" 12' 21'6" 31'9"
Note: The parameters in 22 12'4" 13' 23'6" 34'9"
BOLD in the formulas 24 13'4" 14' 25'6" 37'9"
above are inches.
26 14'4" 15' 27'6" 40'9"

2 LEAF KIT Opening Range: 26ft max • Weight: 880lbs per leaf max
WHEELS RG2-120-50
1 drive wheel
1 free wheel
2 standard wheels with half-round groove

TRACK RG-30P 289G-19.68FT 291
289G-9.84FT
Connection Pin
Galvanized Rack Track
SLIDING GATE SYSTEMS 6'6" sections Galvanized Half Round Track
Use table above to calculate track
Use table above to calculate track
needed by using (B2)
needed by using (B1)
RACK
262
Galvanized Gear Rack 266 264
Gear rack connection to
Gear rack connection
3'3" sections to screw rack to gate weld rack to steel gate
(3 connectors are needed per 3'3" section of gear rack)
