P. 445

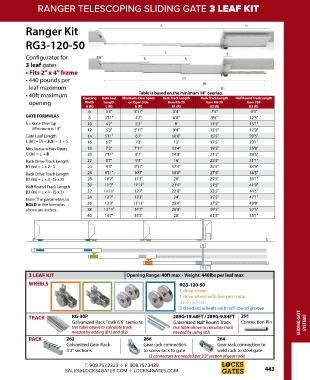

RANGER TELESCOPING SLIDING GATE 3 LEAF KIT
Ranger Kit
RG3-120-50
S
Configurator for 2⅜" S S
3 leaf gates
• Fits 2" x 4" frame
• 440 pounds per
leaf maximum
Table is based on the minimum 14" overlap.
• 40ft maximum Opening Gate Leaf Minimum Clear Space Rack Track Length Rack Track Length Half Round Track Length
opening Width Length on Open Side Item RG-30 Item RG-30 Item 289
A (ft) L (ft) G (ft) B1 (ft) B2 (ft) B3 (ft)
6 3'3" 3'11" 5'4" 7'5" 9'9"
GATE FORMULAS 8 3'11" 4'7" 6'8" 9'5" 12'5"
S = Gate Overlap 10 4'7" 5'3" 8' 11'5" 15'1"
Minimum is 14" 12 5'3" 5'11" 9'4" 13'5" 17'9"
Gate Leaf Length 14 5'11" 6'7" 10'8" 15'5" 20'5"
L (in) = (A + 2.5) ÷ 3 + S 16 6'7" 7'3" 12' 17'5" 23'1"
Min Space when Open 18 7'3" 7'11" 13'4" 19'5" 25'9"
G (in) = L + 8 20 7'11" 8'7" 14'8" 21'5" 28'5"
Rack Drive Track Length 22 8'7" 9'3" 16' 23'5" 31'1"
B1 (in) = L x 2 - S 24 9'3" 9'11" 17'4" 25'5" 33'9"
Rack Drive Track Length 26 9'11" 10'7" 18'8" 27'5" 36'5"
B2 (in) = L x 3 - (S x 2) 28 10'7" 11'3" 20' 29'5" 39'1"
Half Round Track Length 30 11'3" 11'11" 21'4" 31'5" 41'9"
B3 (in) = L x 4 - (S x 3) 32 11'11" 12'7" 22'8" 33'5" 44'5"
Note: The parameters in 34 12'7" 13'3" 24' 35'5" 47'1"
BOLD in the formulas 36 13'3" 13'11" 25'4" 37'5" 49'9"
above are inches. 38 13'11" 14'7" 26'8" 39'5" 52'5"
40 14'7" 15'3" 28' 41'5" 55'1"
3 LEAF KIT Opening Range: 40ft max • Weight: 440lbs per leaf max
WHEELS RG3-120-50
1 drive wheel
1 drive wheel with low gear ratio
2 free wheels
2 standard wheels with half-round groove
TRACK RG-30P 289G-19.68FT / 289G-9.84FT 291
Galvanized Rack Track 6'6" sections Galvanized Half Round Track Connection Pin SLIDING GATE SYSTEMS
Use table above to calculate track Use table above to calculate track
needed by adding (B1) and (B2) needed by using (B3)
RACK 262 266 264
Galvanized Gear Rack Gear rack connection Gear rack connection to
3'3" sections to screw rack to gate weld rack to steel gate
(3 connectors are needed per 3'3" section of gear rack)
