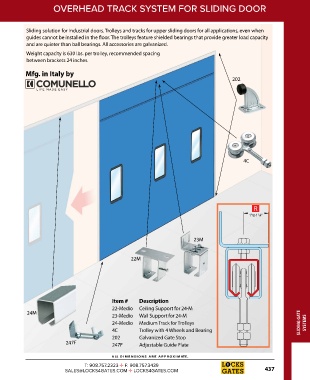

OVERHEAD TRACK SYSTEM FOR SLIDING DOOR
Sliding solution for industrial doors. Trolleys and tracks for upper sliding doors for all applications, even when
guides cannot be installed in the floor. The trolleys feature shielded bearings that provide greater load capacity
and are quieter than ball bearings. All accessories are galvanized.
Weight capacity is 630 lbs. per trolley, recommended spacing
between brackets 24 inches.
202
4C
R
1” to 1 /4”
1
23M
22M
Item # Description
22-Medio Ceiling Support for 24-M
24M 23-Medio Wall Support for 24-M
24-Medio Medium Track for Trolleys SLIDING GATE SYSTEMS
4C Trolley with 4 Wheels and Bearing
202 Galvanized Gate Stop
247F 247F Adjustable Guide Plate
A LL DIMENSIONS ARE APPR O XIM ATE .
