P. 442

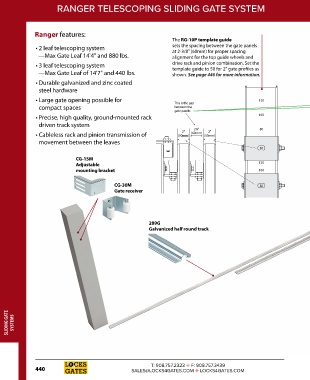

RANGER TELESCOPING SLIDING GATE SYSTEM
Ranger features:
The RG-10P template guide
• 2 leaf telescoping system sets the spacing between the gate panels
at 2-3/8" (60mm) for proper spacing
—Max Gate Leaf 14'4" and 880 lbs. alignment for the top guide wheels and
• 3 leaf telescoping system drive rack and pinion combination. Set the
template guide to 50 for 2" gate profiles as
—Max Gate Leaf of 14'7" and 440 lbs. shown. See page 446 for more information.
• Durable galvanized and zinc coated
steel hardware
• Large gate opening possible for This is the gap 120
compact spaces between the
gate panels
• Precise, high quality, ground-mounted rack 100
driven track system
2⅜" 80
2"
2"
• Cableless rack and pinion transmission of (50mm) (60mm) (50mm)
movement between the leaves
50
CG-15M
Adjustable 120
mounting bracket 100
CG-30M 50
Gate receiver
289G
Galvanized half round track
