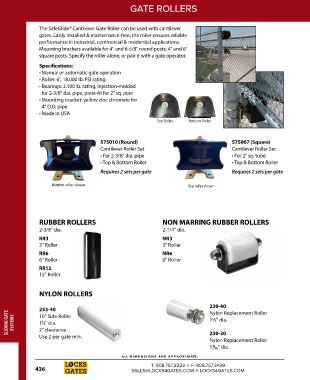

GATE ROLLERS

The SafeGlide® Cantilever Gate Roller can be used with cantilever
gates. Easily installed & maintenance-free, the roller ensures reliable
performance in industrial, commercial & residential applications.
Mounting brackets available for 4" and 6-5/8" round posts; 4" and 6"
square posts. Specify the roller alone, or pair it with a gate operator.
Specifications:
• Manual or automatic gate operation
• Roller: 6", 18,000 lb. PSI rating
• Bearings: 3,100 lb. rating, injection-molded
for 2-3/8" dia. pipe, press-fit for 2" sq. pipe
• Mounting bracket: yellow zinc chromate for
4" O.D. pipe
• Made in USA
Top Roller Bottom Roller

575010 (Round) 575007 (Square)
Cantilever Roller Set Cantilever Roller Set
• For 2-3/8" dia. pipe • For 2" sq. tube
• Top & Bottom Roller • Top & Bottom Roller
Requires 2 sets per gate Requires 2 sets per gate

Bottom roller shown Top roller shown

RUBBER ROLLERS NON MARRING RUBBER ROLLERS
2-3/8" dia. 2-1/4" dia.
RR3 NR3
3" Roller 3" Roller
RR6 NR6
6" Roller 6" Roller
RR12
12" Roller

NYLON ROLLERS

230-40
253-40 Nylon Replacement Roller
SLIDING GATE SYSTEMS 10" Side Roller 1½" dia.
1¼" dia.
2" clearance
Use 2 per gate min. 230-30
Nylon Replacement Roller
1³/₁₆" dia.

A LL DIMENSIONS ARE APPR O XIM ATE .
