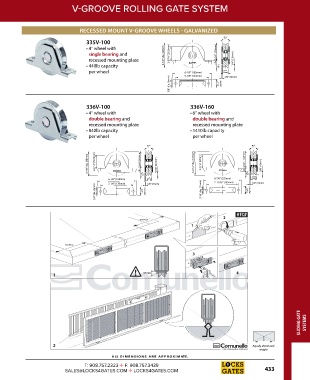

V-GROOVE ROLLING GATE SYSTEM

RECESSED MOUNT V-GROOVE WHEELS - GALVANIZED

335V-100
• 4" wheel with
single bearing and 3-7/8” dia. (98mm) 2-3/16” (55.5mm) 2-3/4” (70mm)
recessed mounting plate 1/4” (7.5mm)
• 440lb capacity BREV. 1/2” (14.5mm) 1/2” (13.5mm)
per wheel 6-1/8” (155mm) 13/16”
(21mm)
5-1/8” (130mm) 1/8” (3mm)
3/8” dia. (9mm) 1-1/4” (32mm)

336V-100 336V-160
• 4" wheel with • 6" wheel with
double bearing and double bearing and
recessed mounting plate recessed mounting plate
• 840lb capacity • 1410lb capacity
per wheel per wheel

3-7/8” dia. (98mm) 2-3/16” (55.5mm) 2-3/4” (69.5mm) 5/16” (8.5mm) 6-3/16” dia. (157mm) 3-7/16” (87mm) 4-5/8” (116.5mm) 3/8” (10mm)

BREV.
1/2” 1/2” (14.5mm) (14mm) BREV. 7/8” (20mm) 7/8” (20.5mm)
1” 8-7/8” (225mm) 1-1/4”
6-1/8” (155mm) (24mm) (33mm)
5-1/8” (130mm) 1/8” (3mm) 7-11/16” (195mm) 1/8” (3mm)
3/8” dia. (9mm) 1-1/4” (32mm) 7/16” dia. (11mm) 1-5/8” (42mm)

SLIDING GATE SYSTEMS

P
Equally distributed
weight
A LL DIMENSIONS ARE APPR O XIM ATE .
