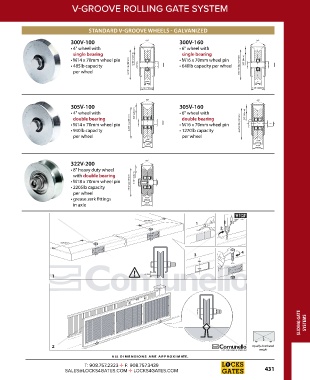

V-GROOVE ROLLING GATE SYSTEM

STANDARD V-GROOVE WHEELS - GALVANIZED

300V-100 300V-160
• 4" wheel with • 6" wheel with
single bearing single bearing
• M14 x 70mm wheel pin 5/16” (7.5mm) • M16 x 70mm wheel pin 3/8” (9mm)
• 485lb capacity 3-7/8” dia. (98mm) • 640lb capacity per wheel 6-3/16” dia. (157mm)
per wheel

13/16” 1”
(21mm) (25mm)
1-11/32” (34mm) 1-3/4” (44mm)

305V-100 305V-160
• 4" wheel with 3/8” (9.5mm) • 6" wheel with 3/8” (10mm)
double bearing double bearing
• M14 x 70mm wheel pin 3-7/8” dia. (98mm) • M16 x 70mm wheel pin 6-3/16” dia. (157mm)
• 940lb capacity • 1270lb capacity
per wheel per wheel
1-1/8”
(28mm) 1-1/4”
(33mm)
1-11/32” 1-3/4”
(34mm)
(44mm)
322V-200
• 8" heavy duty wheel
with double bearing
• M18 x 70mm wheel pin 7-3/4” dia. (197mm) 7/16” (10.5mm)
• 2205lb capacity
per wheel
• grease zerk fittings (38mm)
1-1/2”
in axle (44mm)
1-3/4”

SLIDING GATE SYSTEMS

P
Equally distributed
weight
A LL DIMENSIONS ARE APPR O XIM ATE .
