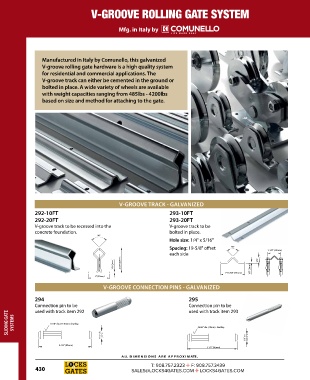

V-GROOVE ROLLING GATE SYSTEM

Manufactured in Italy by Comunello, this galvanized
V-groove rolling gate hardware is a high quality system
for residential and commercial applications. The
V-groove track can either be cemented in the ground or
bolted in place. A wide variety of wheels are available
with weight capacities ranging from 485lbs - 4200lbs
based on size and method for attaching to the gate.

V-GROOVE TRACK - GALVANIZED
292-10FT 293-10FT
292-20FT 293-20FT
V-groove track to be recessed into the V-groove track to be
concrete foundation. bolted in place.
90°
Hole size: 1/4" x 5/16"
Spacing: 19-5/8" offset 90° 1-1/2” (42mm)
each side
1/8” (3mm) 2-3/8” (60mm) 9/16” 14mm)

2-11/64” (55mm) 1/8” (3mm)
2” (50mm)
V-GROOVE CONNECTION PINS - GALVANIZED

294 295
Connection pin to be Connection pin to be
used with track item 293
used with track item 292
SLIDING GATE SYSTEMS 11/16” dia. (17.5mm) knurling 25/64” dia. (10mm) knurling

3-1/2” (90mm) 11/16” dia. (17mm) 3/8” dia. (9.5mm)
3-1/2” (90mm)
A LL DIMENSIONS ARE APPR O XIM ATE .
