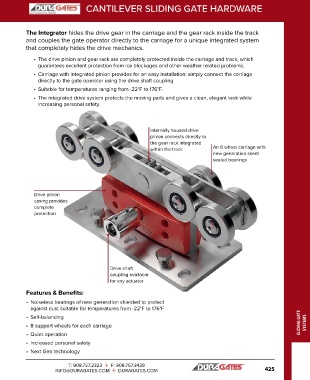

CANTILEVER SLIDING GATE HARDWARE

The Integrator hides the drive gear in the carriage and the gear rack inside the track
and couples the gate operator directly to the carriage for a unique integrated system
that completely hides the drive mechanics.

• The drive pinion and gear rack are completely protected inside the carriage and track, which
guarantees excellent protection from ice blockages and other weather related problems.
• Carriage with integrated pinion provides for an easy installation: simply connect the carriage
directly to the gate operator using the drive shaft coupling
• Suitable for temperatures ranging from -22°F to 176°F.
• The integrated drive system protects the moving parts and gives a clean, elegant look while
increasing personal safety.

Internally housed drive
pinion connects directly to
the gear rack integrated
within the track An 8 wheel carriage with
new generation silent
sealed bearings

Drive pinion
casing provides
complete
protection

Drive shaft
coupling available
for any actuator
Features & Benefits:

• Noiseless bearings of new generation shielded to protect
against dust suitable for temperatures from -22°F to 176°F
• Self-balancing
• 8 support wheels for each carriage SLIDING GATE SYSTEMS
• Quiet operation

• Increased personal safety
• Next Gen technology
