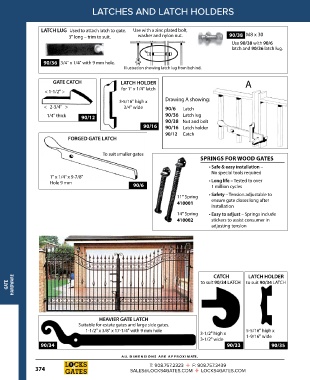

Page 376 - CATALOG

LATCHES AND LATCH HOLDERS

LATCH LUG Used to attach latch to gate. Use with a zinc plated bolt,
3" long – trim to suit. washer and nylon nut. 90/38 M8 x 30
Use 90/38 with 90/6
latch and 90/36 latch lug.

90/36 3/4" x 1/4" with 9 mm hole.
Illustration showing latch lug from behind.

GATE CATCH LATCH HOLDER A
for 1" x 1/4" latch
< 1-1/2" >
3-5/16" high x Drawing A showing:
< 2-3/4" > 3/4" wide 90/6 Latch
1/4" thick 90/12 90/36 Latch lug
90/38 Nut and bolt
90/16 90/16 Latch holder
90/12 Catch
FORGED GATE LATCH

To suit smaller gates
SPRINGS FOR WOOD GATES
• Safe & easy installation –
No special tools required
1" x 1/4" x 9-7/8"
Hole 9 mm 90/6 • Long life – Tested to over
1 million cycles

11" Spring • Safety – Tension adjustable to
410001 ensure gate closes long after
installation
14" Spring • Easy to adjust – Springs include
410002 stickers to assist consumer in
adjusting tension

CATCH
LATCH HOLDER
HARDWARE
GATE to suit 90/34 LATCH to suit 90/34 LATCH

HEAVIER GATE LATCH
Suitable for estate gates and large side gates.
1-1/2" x 3/8" x 17-1/4" with 9 mm hole 5-5/16" high x
3-1/2" high x 1-9/16" wide
3-1/2" wide
90/34 90/33 90/35

A LL DIMENSIONS ARE APPR O XIM ATE .
